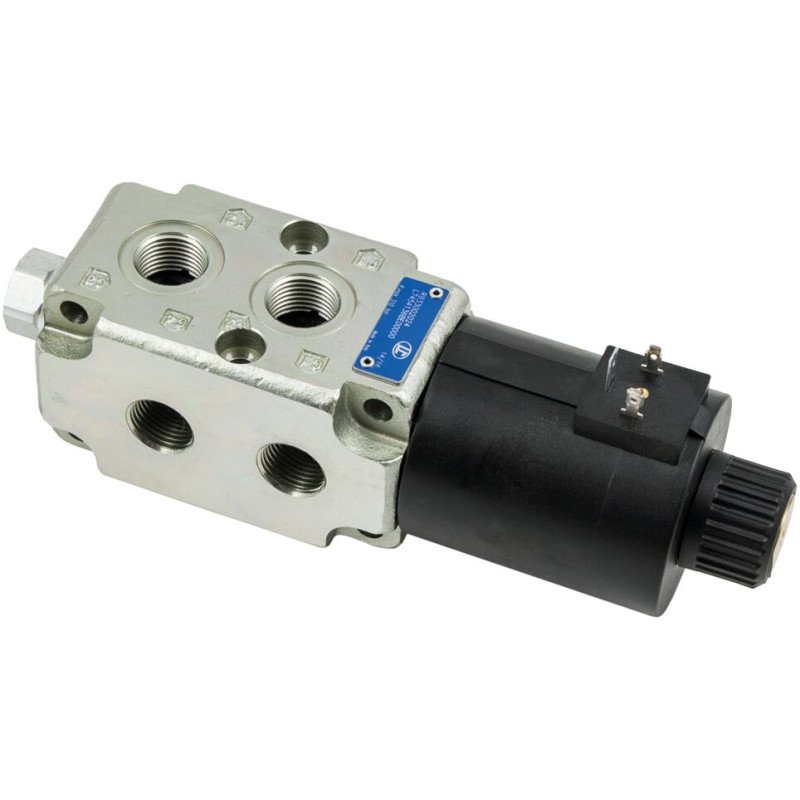

R930058250
L7454136DIAD070-S.VS281F1-1/2G-DZ-P1C2N&

R930058250
  • Availability: on request
  • Weight: 3.92 KG
  • Part number: R930058250
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930058250
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 90 l/min
Net weight 3.92 kg
Nominal flow 90 l/min
Operating pressure, max. 310 bar
Other properties
Coil integrated Integrated coil
Direct - Pilot Direct acting
Drain type Internal drain
Electrical connector Deutsch DT04-2P
Hydraulic fluid HL,HLP
Ports G 1/2
Ports number 6
Positions 2
Product family VS280F
Product family 6 ways
Product family classification 6 to 14/2 ways/positions bankable flow diverters flangeable
Product family type VS281F
Product type VS280F
Sealing material NBR
Spool Poppet Spool type
Supply voltage 13 V DC
Type of connection Threaded connection
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 90 l/min (24 gpm)
  • Size 10
  • Ports: G 1/2
