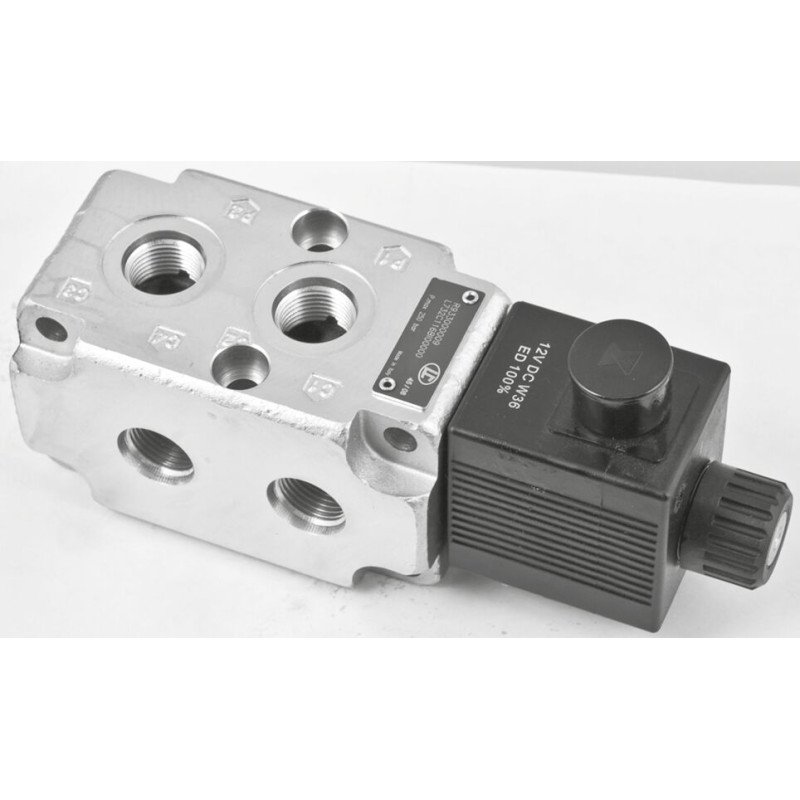

R930054148
L732C116PI00000-KS.VS245F1-SAE8-DZ-6P-D&

R930054148
  • Availability: on request
  • Weight: 2.78 KG
  • Part number: R930054148
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930054148
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 50 l/min
Net weight 2.78 kg
Nominal flow 50 l/min
Operating pressure, max. 310 bar
Other properties
Coil C48
Coil integrated To be ordered separately
Direct - Pilot Direct acting
Drain type Internal drain
Hydraulic fluid HL,HLP
Ports 3/4-16 UNF-2B (SAE8)
Ports number 6
Positions 2
Product family VS241F
Product family 6 ways
Product family classification 6 to 14/2 ways/positions bankable flow diverters flangeable
Product family type VS245F
Product type VS241F
Sealing material NBR
Spool Poppet Spool type
Type of connection Threaded connection
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 50 l/min (13 gpm)
  • Size 6
  • Ports: 3/4-16 UNF-2B (SAE8)
DataSheet (13)
PDF 6/2 ways/positions flow diverters with ports C1, C2, C3 and C4 single side – L725.... (VS161-VS165) (EN)
PDF 3/2 ways/positions flow diverters – L706... (VS91-VS92-VS95) (EN)
PDF 6 to14/2 ways/positions bankable flow diverters flangeable – L732.... (VS241F-VS245F-VS246F-VS247F) (EN)
PDF 6/2 ways/positions flow diverters – L721.... (VS151-VS152-VS155) (EN)
PDF 6/2 ways/positions piloted flow diverters - Size 16 – L7556... (VS400) (EN)
PDF 6 to 14/2 ways/positions bankable flow diverters flangeable – L739.... (VS270F) (EN)
PDF 6/2 ways/positions flow diverters – L753.... (VS311-VS312-VS315) (EN)
PDF 3/2 ways/positions flow diverters – L705... (VS81-VS82-VS84-VS85) (EN)
PDF 6 to 12/2 ways/positions bankable flow diverters fl angeable – L711... (VS120AF-VS125AF) (EN)
PDF 3/2 ways/positions fl ow diverters – L700... (VS70A) (EN)
PDF 8/2 ways/positions flow diverters – L765... (VS570-VS575) (EN)
PDF 6 to14/2 ways/positions bankable flow diverters flangeable – L745... (VS281F-VS285F-VS286F-VS287F-VS289F) (EN)
PDF 6/2 ways/positions flow diverters – L710... (VS120A-VS125A-VS129A) (EN)
