R930054636

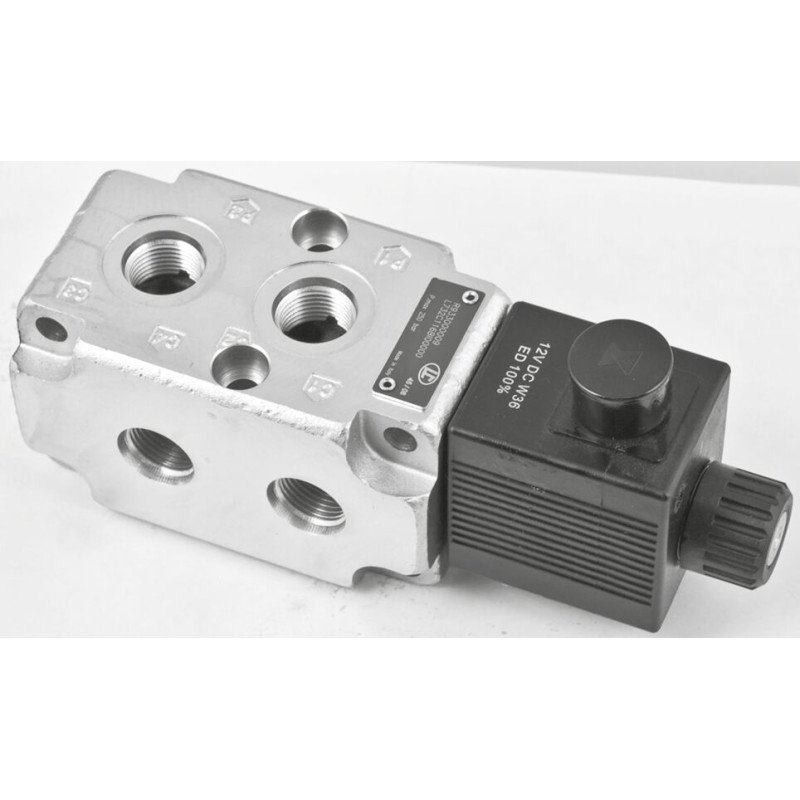

L73231F6BIOC010-SV.VS241F1-3/8G-EF-P1C1&

R930054636
  • Availability: on request
  • Weight: 3.36 KG
  • Part number: R930054636
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930054636
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 50 l/min
Net weight 3.36 kg
Nominal flow 50 l/min
Operating pressure, max. 310 bar
Other properties
Coil integrated Integrated coil
Direct - Pilot Direct acting
Drain type Internal drain
Electrical connector DIN 43650 – EN 175301-803
Hydraulic fluid HL,HLP
Manual override Screw type manual override
Ports G 3/8
Ports number 6
Positions 2
Product family VS241F
Product family 6 ways
Product family classification 6 to 14/2 ways/positions bankable flow diverters flangeable
Product family type VS241F
Product type VS241F
Sealing material NBR
Spool Poppet Spool type
Supply voltage 24 V DC
Type of connection Threaded connection
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 50 l/min (13 gpm)
  • Size 6
  • Ports: G 3/8
