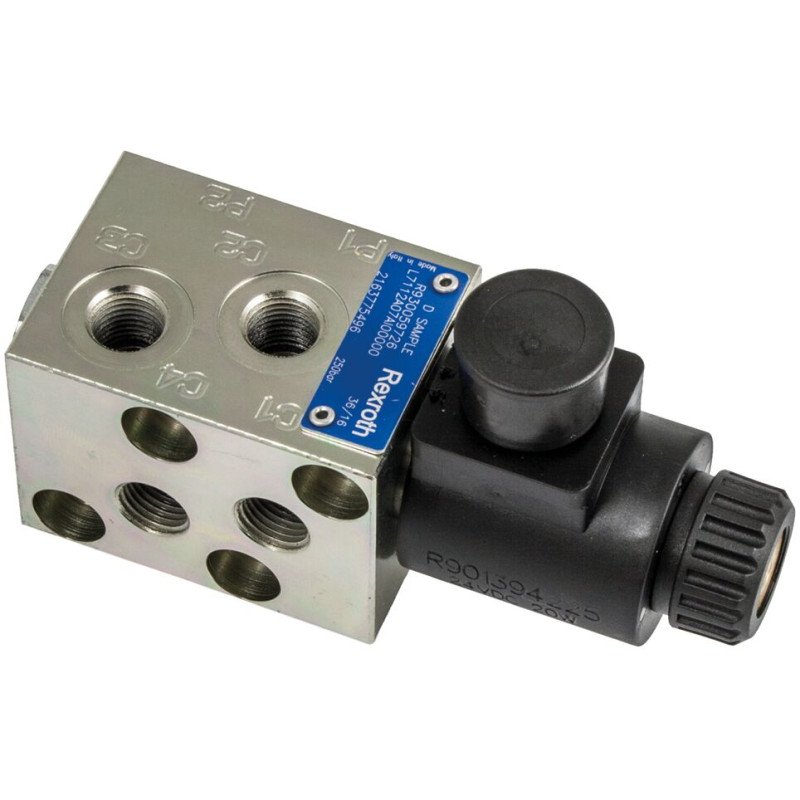

R930059694
L7112A06AIOB020-S.VS120F1-1/4G-A-P1C1-D&

R930059694
  • Availability: On request
  • Weight: 1.03 KG
  • Part number: R930059694
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930059694
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 20 l/min
Net weight 1.033 kg
Nominal flow 20 l/min
Operating pressure, max. 310 bar
Other properties
Coil integrated Integrated coil
Direct - Pilot Direct acting
Drain type Internal drain
Electrical connector With mating connector
Hydraulic fluid HL,HLP
Ports G 1/4
Ports number 6
Positions 2
Product family VS120F
Product family 6 ways
Product family classification 6 to 12/2 ways/positions bankable flow diverters flangeable
Product family type VS120F
Product type VS120F
Sealing material NBR
Spool Poppet Spool type
Supply voltage 12 V DC
Type of connection Threaded connection
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 20 l/min (5 gpm)
  • Size 4
  • Ports: G 1/4
