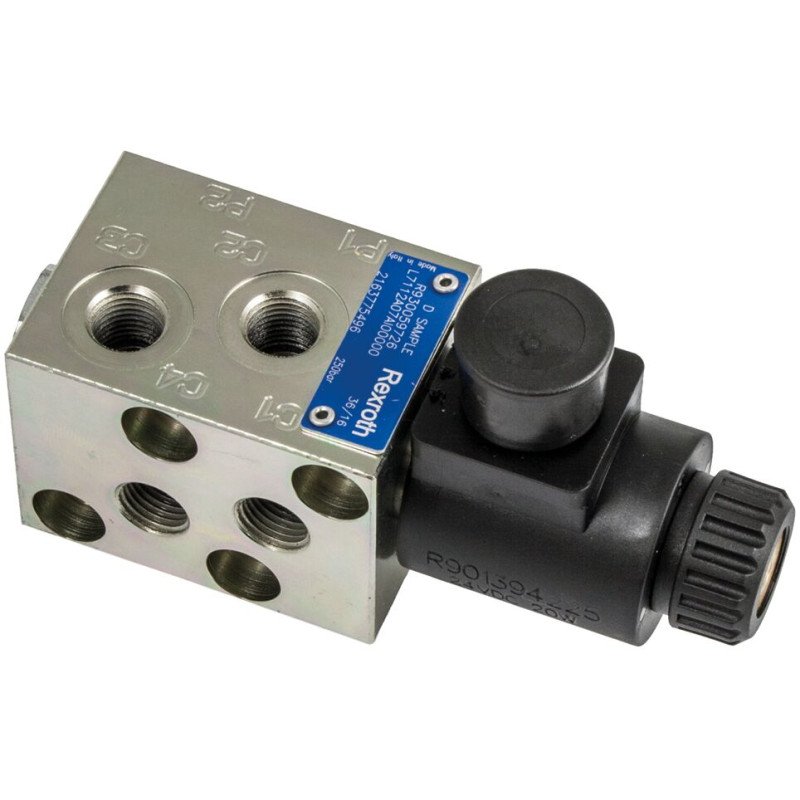

R930059685
L7112A06AIOB010-S.VS120F1-1/4G-A-P1C1-D&

R930059685
  • Availability: on request
  • Weight: 1.04 KG
  • Part number: R930059685
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930059685
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.04 kg
Operating pressure, max. 310 bar
Max. flow 20 l/min
Nominal flow 20 l/min
Other properties
Product family classification 6 to 12/2 ways/positions bankable flow diverters flangeable
Product family type VS120F
Product family VS120F
Ports number 6
Positions 2
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Direct acting
Coil integrated Integrated coil
Supply voltage 12 V DC
Electrical connector DIN 43650 – EN 175301-803
Ports G 1/4
Drain type Internal drain
Sealing material NBR
Hydraulic fluid HL,HLP
Product family 6 ways
Product type VS120F
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 20 l/min (5 gpm)
  • Size 4
  • Ports: G 1/4
Manual (1)
PDF 6 to 12/2 ways/positions bankable flow diverters fl angeable – L711... (VS120AF-VS125AF) (EN)
