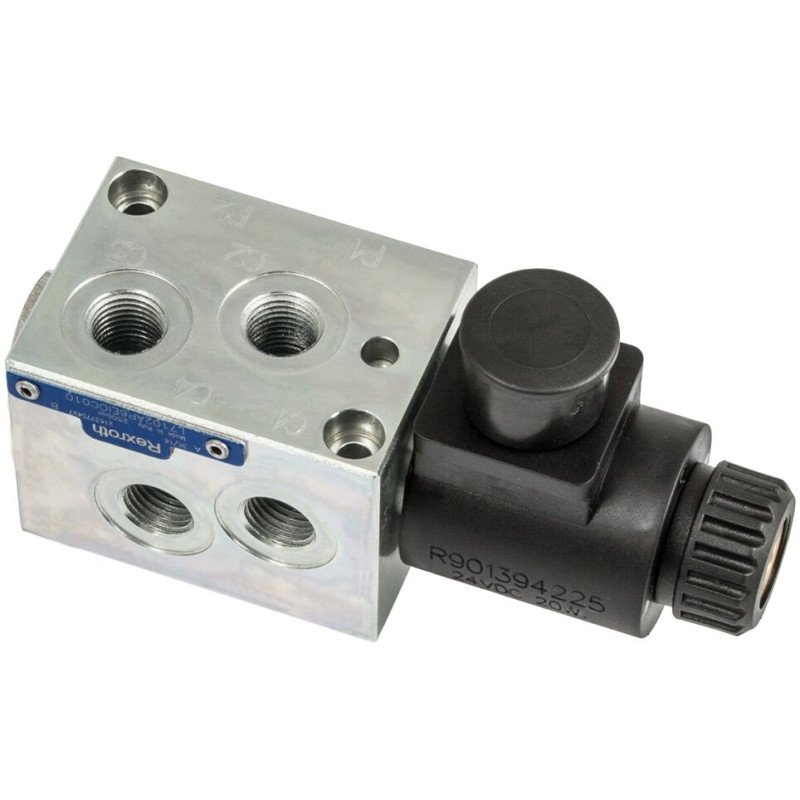

R930059638
L7102A06AIOB070-SE.VS120-1/4G-A-P1C1-DI&

R930059638
  • Availability: on request
  • Weight: 1.10 KG
  • Part number: R930059638
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930059638
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.095 kg
Operating pressure, max. 310 bar
Max. flow 25 l/min
Nominal flow 25 l/min
Other properties
Product family classification 6/2 ways/positions flow diverters
Product family type VS120
Product family VS120
Ports number 6
Positions 2
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Direct acting
Coil integrated Integrated coil
Supply voltage 12 V DC
Electrical connector Deutsch DT04-2P
Ports G 1/4
Drain type Internal drain
Sealing material NBR
Hydraulic fluid HL,HLP
Product family 6 ways
Product type VS120
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 25 l/min (7 gpm)
  • Size 4
  • Ports: G 1/4
Manual (1)
PDF 6/2 ways/positions flow diverters – L710... (VS120A-VS125A-VS129A) (EN)
