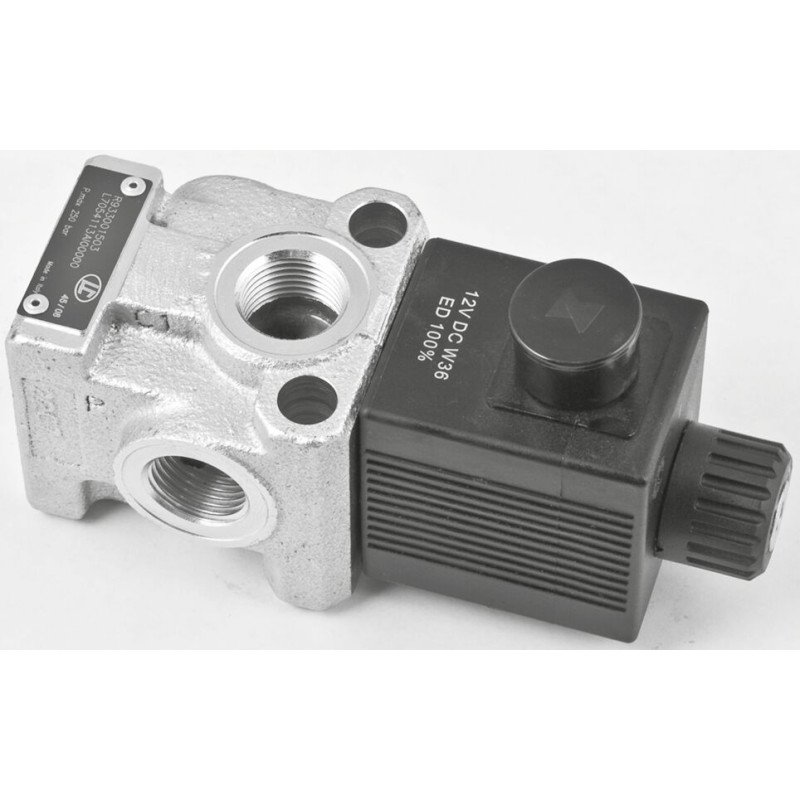

R930059957
L70541F3NEOB010-SE.VS82-1/2G-DZ-AN-12DC&

R930059957
  • Availability: on request
  • Weight: 1.90 KG
  • Part number: R930059957
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930059957
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.9 kg
Operating pressure, max. 310 bar
Max. flow 60 l/min
Nominal flow 60 l/min
Other properties
Product family classification 3/2 ways/positions flow diverters
Product family type VS82
Product family VS8X
Ports number 3
Positions 2
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Direct acting
Coil integrated Integrated coil
Supply voltage 12 V DC
Electrical connector DIN 43650 – EN 175301-803
Ports G 1/2
Manual override Screw type manual override
Drain type External drain
Sealing material NBR
Hydraulic fluid HL,HLP
Product family 3 ways
Product type VS8X
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Size 6
  • Ports: G 1/2
Manual (1)
PDF 3/2 ways/positions flow diverters – L705... (VS81-VS82-VS84-VS85) (EN)
