R932500114

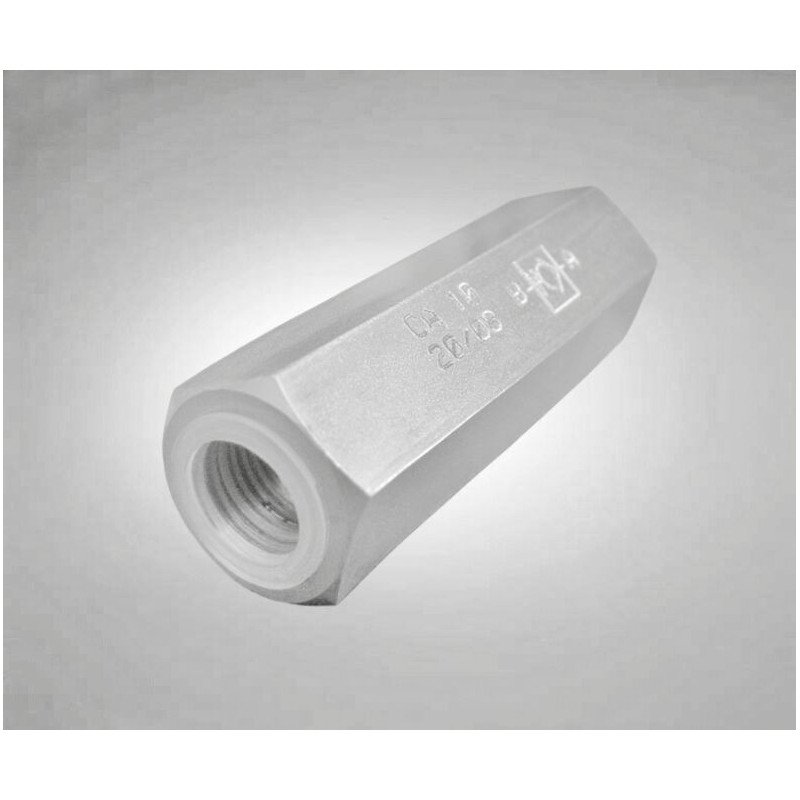

CA 25 V.N/RIT.G-1-MOLLA-0.5BAR-ZB

R932500114
  • Availability: on request
  • Weight: 1.02 KG
  • Part number: R932500114
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 10.

R932500114
Physical size and weight
Max. flow 160 l/min
Net weight 1.02 kg
Nominal flow 160 l/min
Operating pressure, max. 250 bar
Pressure setting 0.5 bar
Other properties
Direct - Pilot Direct acting
Hydraulic fluid HL,HLP
Ports G 1
Ports number 2
Product family CA
Product family classification Check valves poppet type with female threaded sleeve
Product family type CA
Spool Poppet Poppet type
Type of connection Threaded connection
Features
  • Maximum operating pressure 250 bar (3600 psi)
  • Maximum flow 160 l/min (42 gpm)
  • Port: G 1
  • Sleeve for line mounting
