R931002276
0TM601039920000-VRA-025-20-150/250-BAR

R931002276
  • Availability: on request
  • Weight: 0.07 KG
  • Part number: R931002276
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 10.

R931002276
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 150-250
Max. flow 30 l/min
Net weight 70 g
Nominal flow 30 l/min
Operating pressure, max. 210 bar
Other properties
Cavity 869
Direct - Pilot Direct acting
Hydraulic fluid HL,HLP
Normal position Normally closed
Ports number 2
Product family VRA1.025
Product family Relief

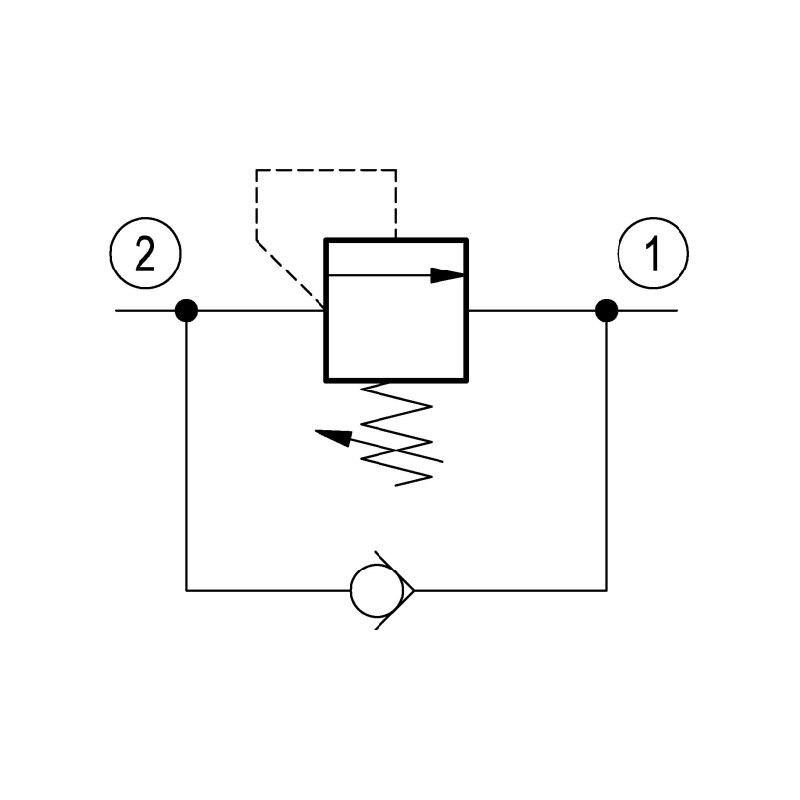

Product family classification Insert type relief, direct acting adjustable, anti-cavitation function
Product family type VRA1
Product type VRA1
Sealing material NBR
Spool Poppet Poppet type
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 30 l/min (8 gpm)
  • Cavity 869
  • Screw-in cartridge valve for insertion
