R931002684
0TM601039915000-VRA-025-15-100/150-BAR

R931002684
  • Availability: on request
  • Weight: 0.08 KG
  • Part number: R931002684
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 10.

R931002684
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 80 g
Operating pressure, max. 210 bar
Max. flow 30 l/min
Nominal flow 30 l/min
Adjustable pressure range 100-150
Other properties

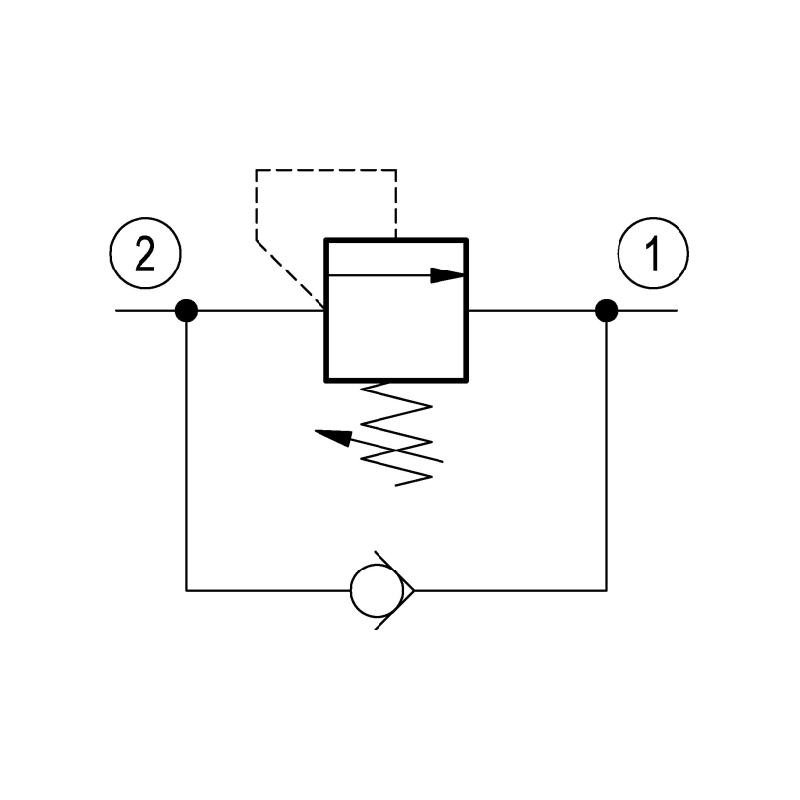

Product family classification Insert type relief, direct acting adjustable, anti-cavitation function
Product family type VRA1
Product family VRA1.025
Ports number 2
Normal position Normally closed
Spool Poppet Poppet type
Direct - Pilot Direct acting
Cavity 869
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Relief
Product type VRA1
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 30 l/min (8 gpm)
  • Cavity 869
  • Screw-in cartridge valve for insertion
Manual (1)
PDF Insert type Relief direct acting adjustable,anti-cavitation function,Special cavity,869 - VRA1.025 (EN)
