R931002097
0TM405009920060-VMA1-025-20-TAR.150-BAR

R931002097
  • Availability: on request
  • Weight: 0.03 KG
  • Part number: R931002097
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 10.

R931002097
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 30 g
Operating pressure, max. 300 bar
Max. flow 30 l/min
Nominal flow 30 l/min
Adjustable pressure range 110-250
Pressure setting 150 bar
Pressure pre-setting With pressure pre-setting
Other properties

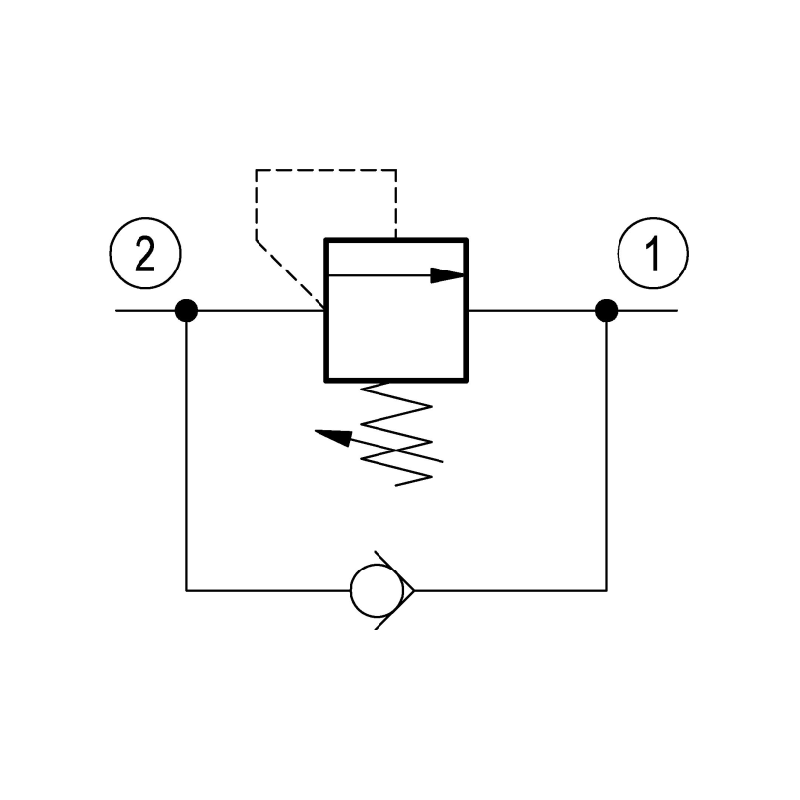

Product family classification Insert type relief, direct acting and anti-cavitation function
Product family type VMA1
Product family VMA1.025
Ports number 2
Normal position Normally closed
Spool Poppet Poppet type
Direct - Pilot Direct acting
Cavity 869
Adjustment options Fixed setting
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Relief
Product type VMA1
Features
  • Maximum operating pressure 300 bar (4300 psi)
  • Maximum flow 30 l/min (8 gpm)
  • Cavity 869
  • Screw-in cartridge valve for insertion
Manual (1)
PDF Insert type Relief, direct acting and anti-cavitation function, Special cavity, 869 - VMA1.025 (EN)
