R931000034
0TM201009920040 VSA1-050-20 TAR.150 BAR

R931000034
  • Availability: on request
  • Weight: 0.06 KG
  • Part number: R931000034
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 10.

R931000034
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 64 g
Operating pressure, max. 380 bar
Max. flow 50 l/min
Nominal flow 50 l/min
Adjustable pressure range 120-200
Pressure setting 150 bar
Pressure pre-setting With pressure pre-setting
Other properties

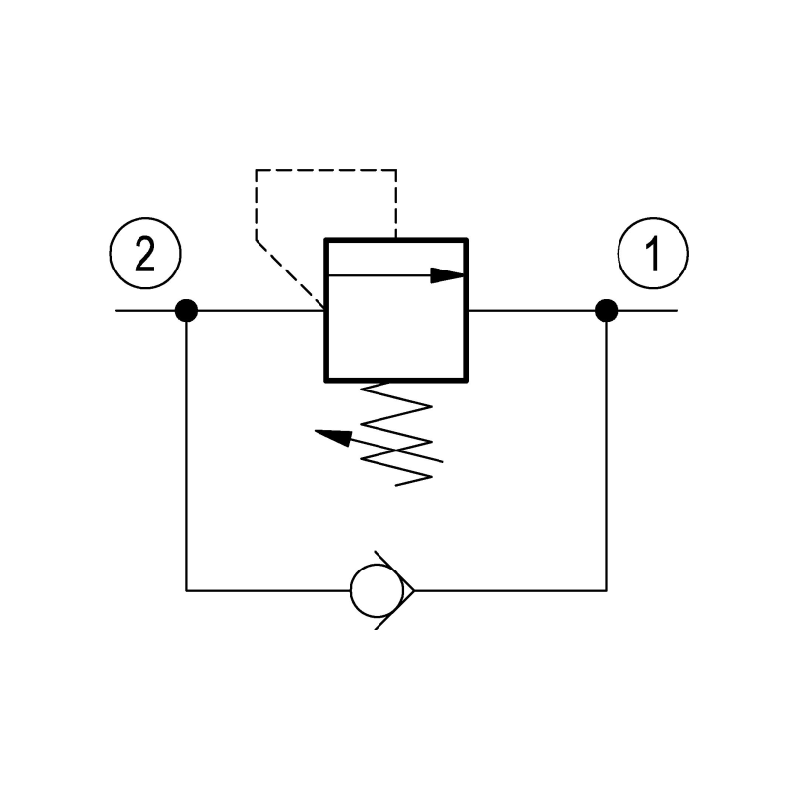

Product family classification Insert type, relief, direct acting poppet type
Product family type VSA1
Product family VSA1.050
Ports number 2
Normal position Normally closed
Spool Poppet Poppet type
Direct - Pilot Direct acting
Cavity 730-A
Adjustment options Fixed setting
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Relief
Product type VSA1
Features
  • Maximum operating pressure 380 bar (5500 psi)
  • Maximum flow 50 l/min (13 gpm)
  • Cavity 730-A
  • Screw-in cartridge valve for insertion
Manual (1)
PDF Insert type, Relief, direct acting poppet type, Special cavity 730-A – VSA1.050 (EN)
