R901476258
HAB50-330-6X/0G09G-3N111-CE

HAB50-330-6X/0G09G-3N111-CE
  • Availability: on request
  • Weight: 123.00 KG
  • Part number: R901476258
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

HAB50-330-6X/0G09G-3N111-CE
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 123 kg
Operating pressure, max. 330 bar
Max. flow 900 l/min
Other properties
ECLASS_13_Classification 51-51-01-01
Product family HAB...CE
Nominal volume 50 l
Material (diaphragm / bladder) NBR
Working port size G2
Conformity CE
Description

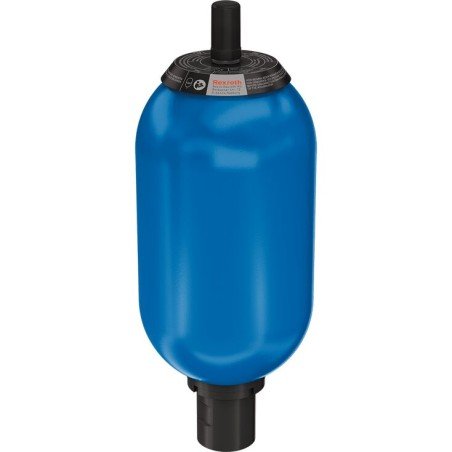

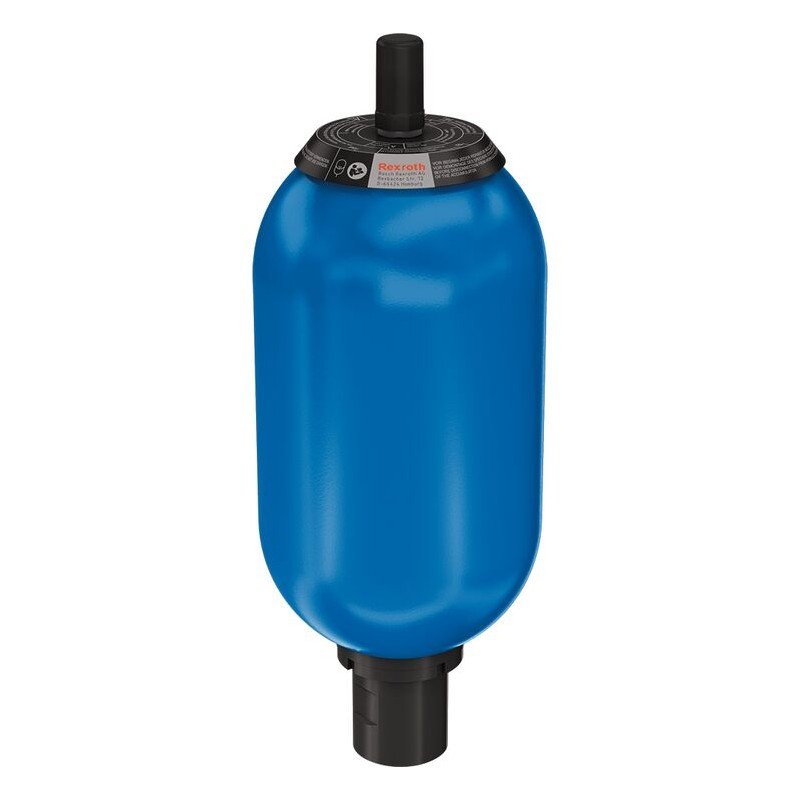

Bladder-type accumulator in accordance with the European Pressure Equipment Directive 2014/68/EU For hydraulic energy storage in intermittent operating systems. Energy reserve for emergencies. Fluid volume compensation or shock and vibration absorption in hydraulic systems.

Features
  • Connection G2, pipe thread with radial sealing surface
  • Bladder material NBR for normal temperature range, mineral oil and HFC fluids
  • Without pre-filling pressure
  • Primed surface
Manual (2)
PDF Bladder-type accumulator, Type HAB...-6X/ (EN)
PDF Bladder-type accumulator (EN)
Pos Name Material Number
8010 SPARE PART
HAB10-6X BLASE NBR BG
 R901437544
8020 SPARE PART
HAB-6X GASVENTIL 5/8“-18 UNF
 R901531340
8030 SPARE PART
HAB10-50-6X HALTERING NBR
 R901438281
8040 SPARE PART
HAB10-50-6X OELVENTIL G09G NBR
 R901438271
8050 SEAL KIT
HAB10-50-6X NBR
 R901441922
Name Material Number
SPEICHER-ZUBEHOER 1531334008
SPEICHER-ZUBEHOER 1530221042
216-222 MM F2 HAB50 R901446479
