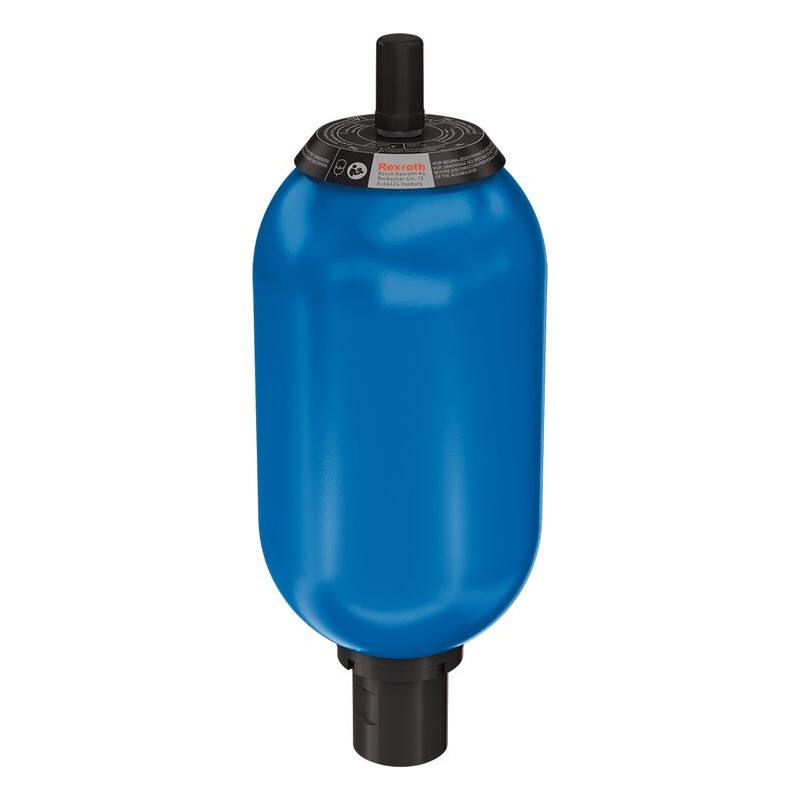

R901435301
HAB2,5-350-6X/0G07G-2N111-CE

HAB2
  • Availability: on request
  • Weight: 8.50 KG
  • Part number: R901435301
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

HAB2
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 450 l/min
Net weight 8.5 kg
Operating pressure, max. 350 bar
Other properties
Conformity CE
ECLASS_13_Classification 51-51-01-01
Material (diaphragm / bladder) NBR
Nominal volume 2.5 l
Product family HAB...CE
Working port size G1 1/4
Description

Bladder-type accumulator in accordance with the European Pressure Equipment Directive 2014/68/EU For hydraulic energy storage in intermittent operating systems. Energy reserve for emergencies. Fluid volume compensation or shock and vibration absorption in hydraulic systems.

Features
  • Connection G1 1/4, pipe thread with radial sealing surface
  • Bladder material NBR for normal temperature range, mineral oil and HFC fluids
  • Without pre-filling pressure
  • Primed surface
DataSheet (1)
PDF Bladder-type accumulator (EN)
OperatingInstructions (1)
PDF Bladder-type accumulator, Type HAB...-6X/ (EN)
Pos Name Material Number
8010 SPARE PART
HAB2,5-6X BLASE NBR BG
 R901437541
8030 SPARE PART
HAB1-6-6X HALTERING NBR
 R901438280
8020 SPARE PART
HAB-6X GASVENTIL
 R901438300
8050 SEAL KIT
HAB2,5-6-6X NBR
 R901441921
Name Material Number
HAB 0538103011
110-120 MM HAD/HAB 1531316021
