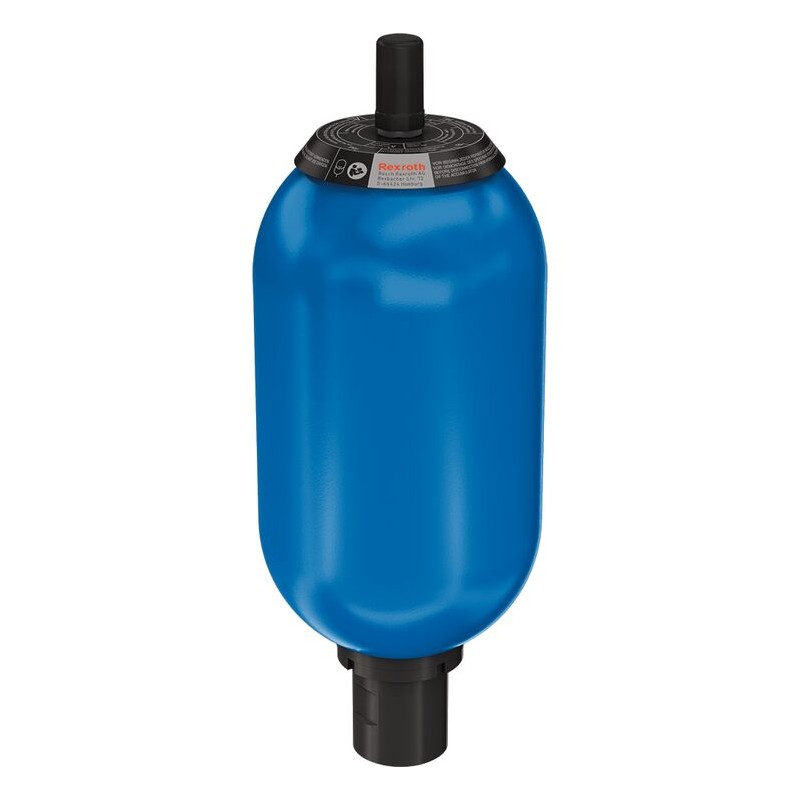

R901435304
HAB10-330-6X/0G09G-2N111-CE

HAB10-330-6X/0G09G-2N111-CE
  • Availability: on request
  • Weight: 29.20 KG
  • Part number: R901435304
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

HAB10-330-6X/0G09G-2N111-CE
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 33 kg
Length 600 mm
Width 220 mm
Height 220 mm
Operating pressure, max. 330 bar
Max. flow 900 l/min
Other properties
ECLASS_13_Classification 51-51-01-01
Product family HAB...CE
Nominal volume 10 l
Material (diaphragm / bladder) NBR
Working port size G2
Conformity CE
Description

Bladder-type accumulator in accordance with the European Pressure Equipment Directive 2014/68/EU For hydraulic energy storage in intermittent operating systems. Energy reserve for emergencies. Fluid volume compensation or shock and vibration absorption in hydraulic systems.

Features
  • Connection G2, pipe thread with radial sealing surface
  • Bladder material NBR for normal temperature range, mineral oil and HFC fluids
  • Without pre-filling pressure
  • Primed surface
Manual (2)
PDF Bladder-type accumulator, Type HAB...-6X/ (EN)
PDF Bladder-type accumulator (EN)
Pos Name Material Number
8010 SPARE PART
HAB10-6X BLASE NBR BG
 R901437544
8020 SPARE PART
HAB-6X GASVENTIL
 R901438300
8030 SPARE PART
HAB10-50-6X HALTERING NBR
 R901438281
8040 SPARE PART
HAB10-50-6X OELVENTIL G09G NBR
 R901438271
8050 SEAL KIT
HAB10-50-6X NBR
 R901441922
Name Material Number
214-224 MM F1 HAB10-6X ... HAB32-6X 1531316023
SPEICHER-ZUBEHOER 1531334008
SPEICHER-ZUBEHOER 1530221042
HAB 0538103011
