R901192263

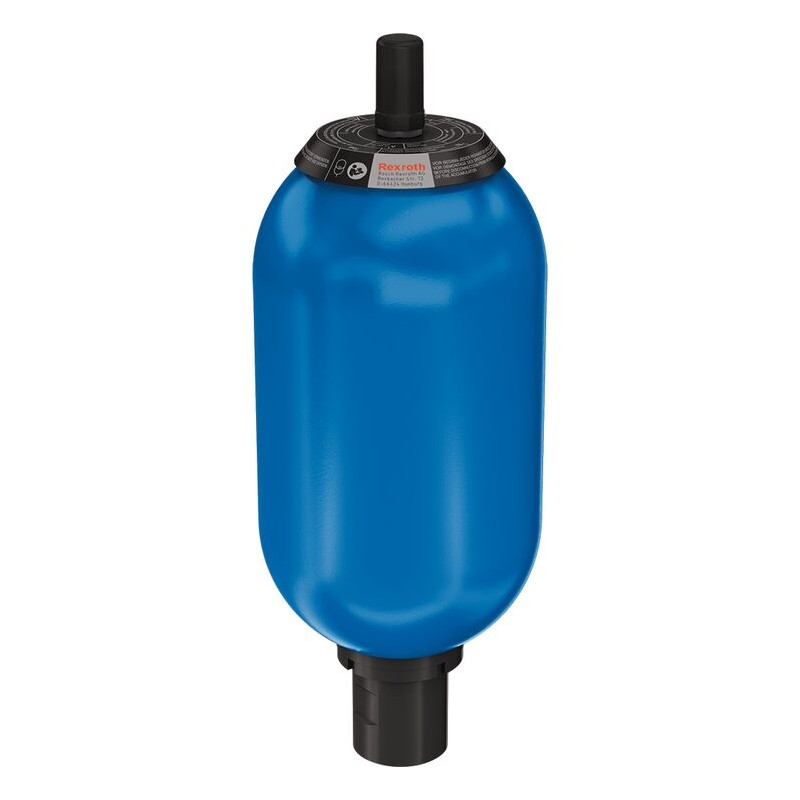

HAB10-330-6X/0G09G-2E111-CE

HAB10-330-6X/0G09G-2E111-CE
  • Availability: on request
  • Weight: 29.20 KG
  • Part number: R901192263
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

HAB10-330-6X/0G09G-2E111-CE
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 900 l/min
Net weight 29.2 kg
Operating pressure, max. 330 bar
Other properties
Conformity CE
ECLASS_13_Classification 51-51-01-01
Material (diaphragm / bladder) ECO
Nominal volume 10 l
Product family HAB...CE
Working port size G2
Description

Bladder-type accumulator in accordance with the European Pressure Equipment Directive 2014/68/EU For hydraulic energy storage in intermittent operating systems. Energy reserve for emergencies. Fluid volume compensation or shock and vibration absorption in hydraulic systems.

Features
  • Connection G2, pipe thread with radial sealing surface
  • Diaphragm material ECO for standard and low temperature
  • Without pre-filling pressure
  • Primed surface
DataSheet (1)
PDF Bladder-type accumulator (EN)
OperatingInstructions (1)
PDF Bladder-type accumulator, Type HAB...-6X/ (EN)
Pos Name Material Number
8010 SPARE PART
HAB10-6X BLASE ECO BG
 R901438235
8040 SPARE PART
HAB10-50-6X OELVENTIL G09G NBR
 R901438271
8030 SPARE PART
HAB10-50-6X HALTERING NBR
 R901438281
8020 SPARE PART
HAB-6X GASVENTIL
 R901438300
8050 SEAL KIT
HAB10-50-6X NBR
 R901441922
Name Material Number
HAB 0538103011
SPEICHER-ZUBEHOER 1530221042
214-224 MM F1 HAB10-6X ... HAB32-6X 1531316023
SPEICHER-ZUBEHOER 1531334008
