R901435300
HAB1-350-6X/0G05G-2N111-BA

HAB1-350-6X/0G05G-2N111-BA
  • Availability: on request
  • Weight: 6.10 KG
  • Part number: R901435300
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

HAB1-350-6X/0G05G-2N111-BA
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 6.1 kg
Operating pressure, max. 350 bar
Max. flow 240 l/min
Other properties
ECLASS_13_Classification 51-51-01-01
Product family HAB...CE
Nominal volume 1 l
Material (diaphragm / bladder) NBR
Working port size G3/4
Conformity BA
Description

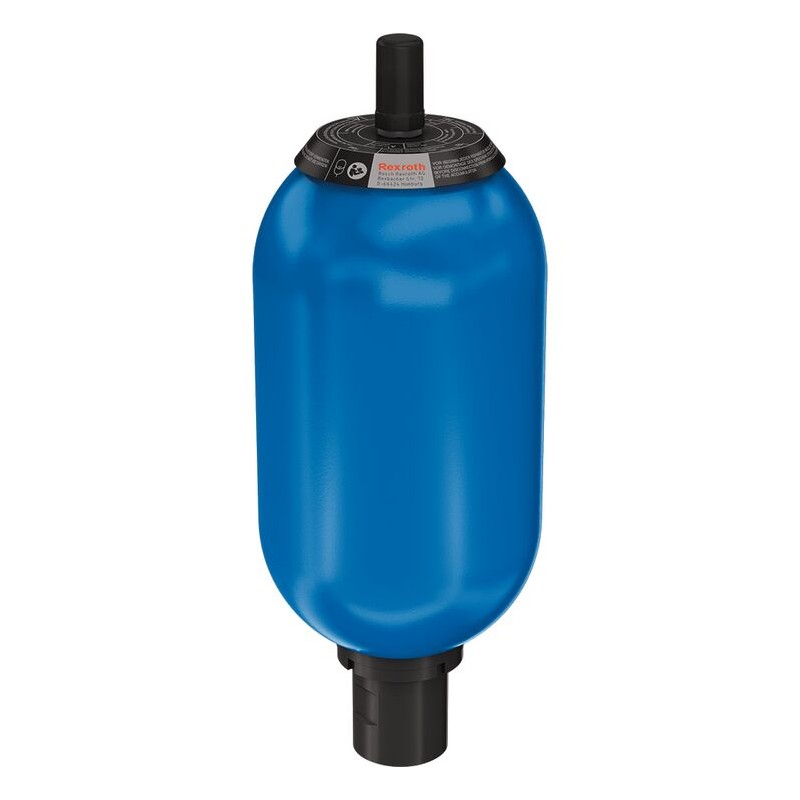

Bladder-type accumulator in accordance with the European Pressure Equipment Directive 2014/68/EU For hydraulic energy storage in intermittent operating systems. Energy reserve for emergencies. Fluid volume compensation or shock and vibration absorption in hydraulic systems.

Features
  • Connection G3/4, pipe thread with radial sealing surface
  • Bladder material NBR for normal temperature range, mineral oil and HFC fluids
  • Without pre-filling pressure
  • Primed surface
Manual (2)
PDF Bladder-type accumulator, Type HAB...-6X/ (EN)
PDF Bladder-type accumulator (EN)
Pos Name Material Number
8010 SPARE PART
HAB1-6X BLASE NBR BG
 R901437540
8020 SPARE PART
HAB-6X GASVENTIL
 R901438300
8030 SPARE PART
HAB1-6-6X HALTERING NBR
 R901438280
8050 SEAL KIT
HAB1-6X NBR
 R901441920
Name Material Number
110-120 MM HAD/HAB 1531316021
HAB 0538103011
