| Electrical accessories for linear axes |

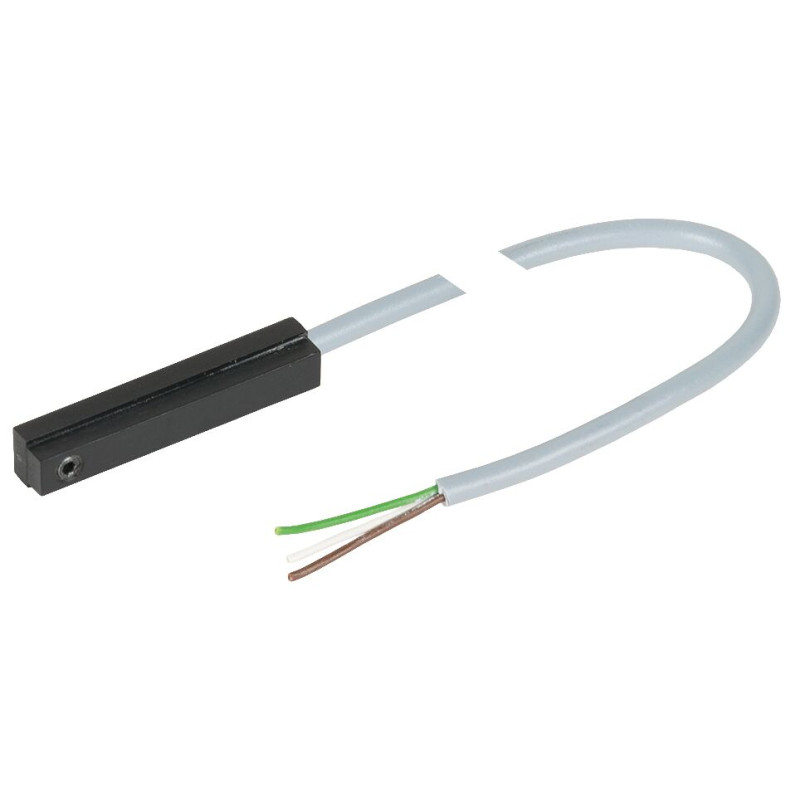

Magnetic sensors
|
| Use |
Reference, limit switch
|
| Connection type |
Cable 2.0 m, 3-pin
|
| Galvanized connection ends |
no
|
| Switching function version |
REED/changeover contact: (NC: C+NC, NO: C+NO)
|
| Certifications and approvals |
‒
|
| Cable cross-section |
3 x 0.14 mm²
|
| Permissible ambient temperature (min. ... max.) |
-40 °C ... +85 °C
|
| Activation point (dimension x) |
9
mm |
| Operating voltage (min. … max.) |
30 V
|
| Dynamic bending radius |
‒
|
| Static bending radius |
‒
|
| Bending cycles |
‒
|
| Switch-on suppression |
no
|
| Function indicator |
no
|
| Functional principle |
magnetic
|
| Dynamic bending radius footnote |
Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Footnote bending radius, static |
Technical data only for the cast-on connection line at the sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.
|
| Bending cycles footnote |
Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Footnote cable cross-section |
Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Suitable for drag chains footnote |
Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Weld spark-resistant footnote |
Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Torsion-resistant footnote |
Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Compatible |
CKK, CKR, MKK/MKR-040, AGK, VKK
|
| Short-circuit protection |
yes
|
| Load current |
500
|
| Max. permissible approach speed |
2
m/s |
| MTTFd (per EN ISO 13849-1) |
‒
|
| Option number |
21
|
| Pulse extension |
yes
|
| Switching frequency |
2500
Hz |
| Suitable for drag chains |
No
|
| Protection class |
IP66
|
| Weld spark-resistant |
yes
|
| Torsion-resistant |
yes
|
| Reverse polarity protection |
yes
|
