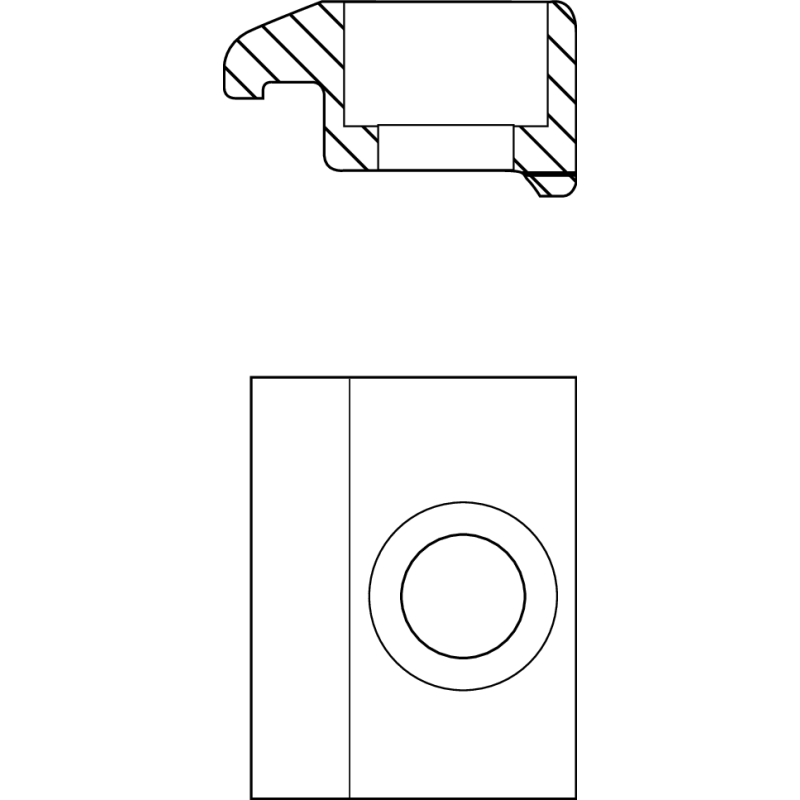

R141901043
PSK 60

R141901043
  • Dostupnost: na dotaz
  • Váha: 0.02 KG
  • Číslo dílu: R141901043
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R141901043
Fyzická velikost a hmotnost
Net weight 16.835 g
Outer diameter D 10 mm
Další vlastnosti
Mechanical accessories for linear axes Clamping fixtures
Nominal size CKK-/CKR-070,MKK-/MKR-040,VKK-050
Type 2
Number of bores N 2
Tightening torque of fastening screws 5.5 Nm
Tightening torque of fixing screws footnote at friction factor 0.125, in accordance with strength class 8.8
Dimension A (profiled rail systems) 57 mm
Dimension B (profiled rail systems) 8.5 mm
Dimension C 40
Dimension D 10 mm
Dimension E 4.8 mm
Dimension F 15.1 mm
Thread Dimension M5
Dimension H 6.5 mm
Footnote Dimension for thread Countersink ISO 4762
CAD (2)
File R141901043.igs (ALL)
File R141901043.stp (ALL)
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
