R117539030
OBB85

R117539030
  • Dostupnost: na dotaz
  • Váha: 0.06 KG
  • Číslo dílu: R117539030
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

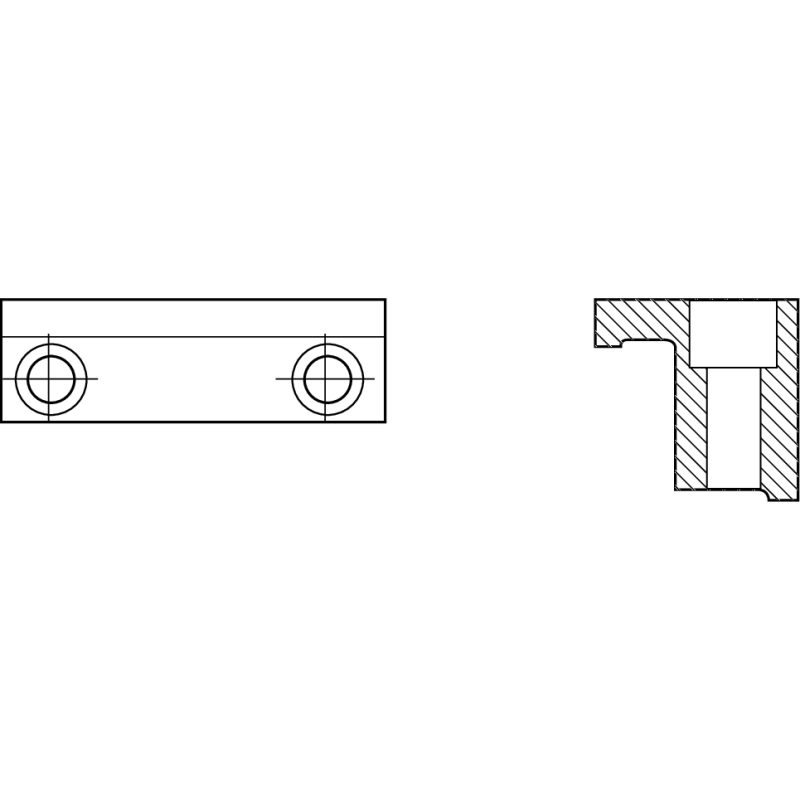

R117539030
Fyzická velikost a hmotnost
Net weight 55.38 g
Outer diameter D 20 mm
Další vlastnosti
Mechanical accessories for linear axes Clamping fixtures
Nominal size OBB-085
Type 2
Number of bores N 2
Tightening torque of fastening screws 9.5 Nm
Tightening torque of fixing screws footnote at friction factor 0.125, in accordance with strength class 8.8
Dimension A (profiled rail systems) 78 mm
Dimension B (profiled rail systems) 14 mm
Dimension C 50
Dimension D 20 mm
Dimension E 11.3 mm
Dimension F 21 mm
Thread Dimension M6
Dimension H 7 mm
Footnote Dimension for thread Countersink ISO 4762
CAD (2)
File R117539030.stp (ALL)
File R117539030.igs (ALL)
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
