| Mechanical accessories for linear axes |

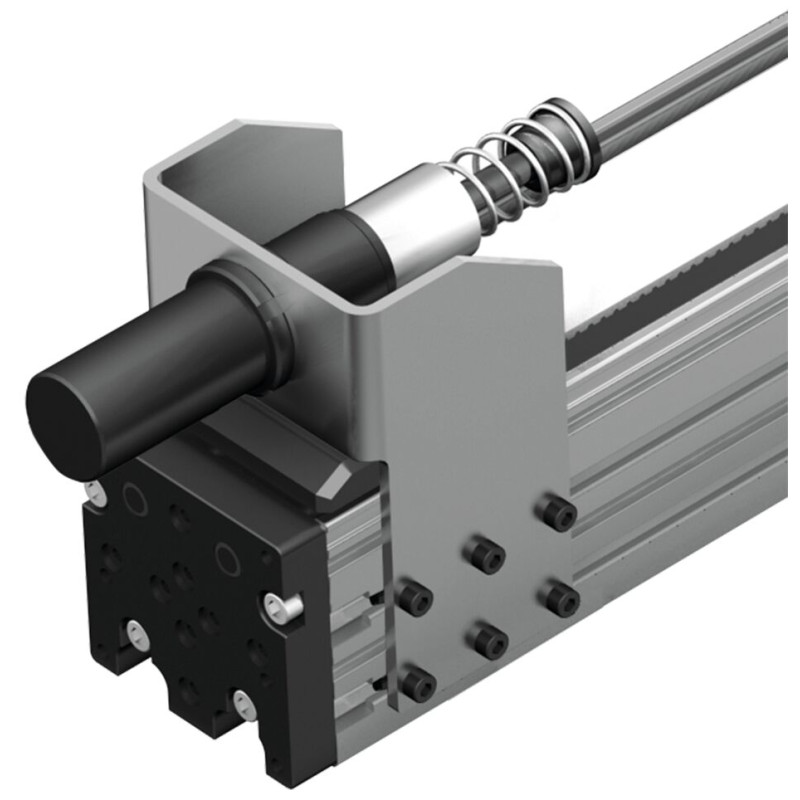

Shock absorbers
|
| Nominal size |
OBB-055
|
| Energy consumption |
620
Nm |
| Energy consumption footnote |
Per stroke
|
| Footnote reduction of max. travel range |
Reduction of the max. travel range of the Omega module (minimum value per side or damper)
|
| Max. braking mass |
20
kg |
| Product information |
Scope of delivery: Holder, shock absorber and mounting accessories
|
| Reduction of max. travel range |
62
mm |
| Dimension A (profiled rail systems) |
70
mm |
| Dimension B (profiled rail systems) |
56.5
mm |
| Dimension D |
M33x1.5 mm
|
| Dimension D lead |
1.5
mm |
| Dimension G |
12
mm |
| Dimension H |
113
mm |
| Dimension H1 (profiled rail systems) |
90.5
|
| Stroke Dimension |
50
mm |
| Dimension Ls |
115
mm |
| Dimension Ls (carriage with clamping unit) |
133
mm |
| Dimension Ls1 |
189
mm |
| Footnote Dimensions Ls (carriage with clamping unit) |
Carriage with clamping unit
|
