| Mechanical accessories for linear axes |
Shock absorbers
|
| Nominal size |

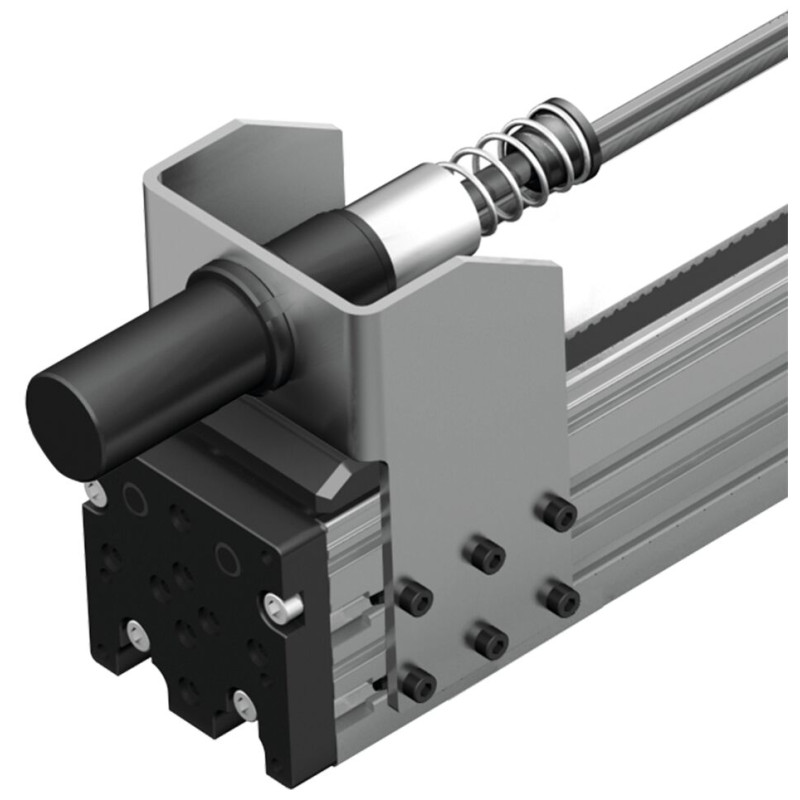

OBB-120
|
| Energy consumption |
2040
Nm |
| Energy consumption footnote |
Per stroke
|
| Footnote reduction of max. travel range |
Reduction of the max. travel range of the Omega module (minimum value per side or damper)
|
| Max. braking mass |
90
kg |
| Product information |
Scope of delivery: Holder, shock absorber and mounting accessories
|
| Reduction of max. travel range |
121
mm |
| Dimension A (profiled rail systems) |
145
mm |
| Dimension B (profiled rail systems) |
99
mm |
| Dimension D |
M45x1.5 mm
|
| Dimension D lead |
1.5
mm |
| Dimension G |
16
mm |
| Dimension H |
210
mm |
| Dimension H1 (profiled rail systems) |
210
|
| Stroke Dimension |
75
mm |
| Dimension Ls |
188
mm |
| Dimension Ls (carriage with clamping unit) |
205
mm |
| Dimension Ls1 |
246
mm |
| Footnote Dimensions Ls (carriage with clamping unit) |
Carriage with clamping unit
|
