R037521021
M4

R037521021
  • Dostupnost: na dotaz
  • Váha: 0.00 KG
  • Číslo dílu: R037521021
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R037521021
Fyzická velikost a hmotnost
Net weight 3.296 g
Outer diameter D 0.4 mm
Další vlastnosti
Dimension A (profiled rail systems) 4 mm
Dimension B (profiled rail systems) 7.8 mm
Dimension C 3.9
Dimension D 0.4 mm
Dimension E 19 mm
Dimension F1 10 mm

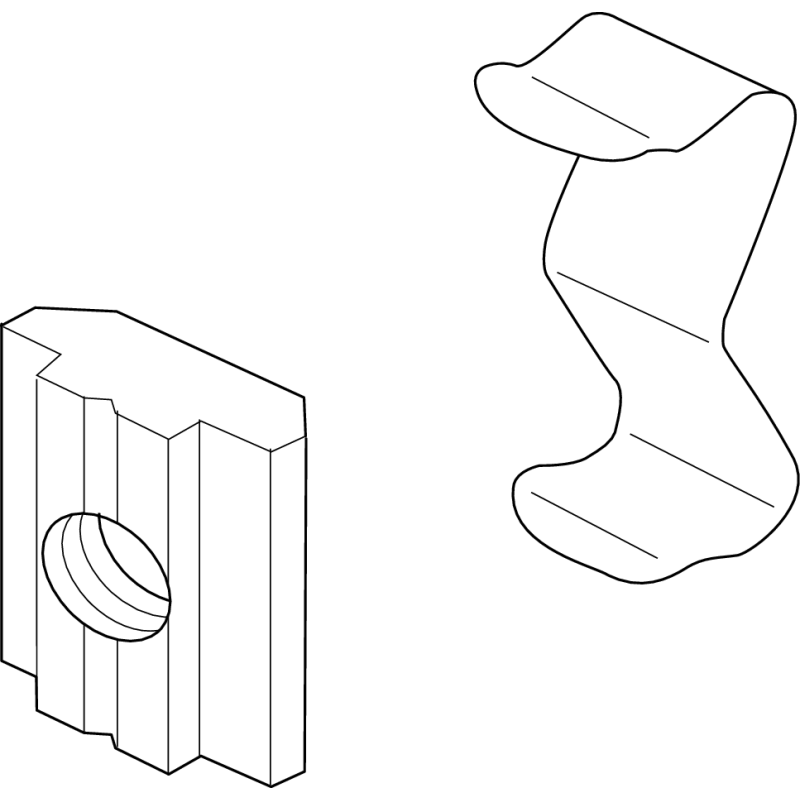

Mechanical accessories for linear axes Sliding blocks and springs
Nominal size CKK-/CKR-070
Number of holes nB (profiled rail systems) 2
Thread Dimension M4
Tightening torque of fastening screws 2.7 Nm
Tightening torque of fixing screws footnote at friction factor 0.125, in accordance with strength class 8.8
Type Sliding block
CAD (2)
File R037521021.igs (ALL)
File R037521021.stp (ALL)
Manual (3)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF 紧凑型模块 CKK/CKR (ALL)
PDF R320103178_2021_04_22_04_2021_ES.pdf (ALL)
