Fyzická velikost a hmotnost
| Net weight |
0.25
kg |
| Width of runner block |
47
mm |
| Length of runner block |
72.6
mm |
| Height of runner block |
19.9
mm |
| Height runner block with guide rail |
24
mm |
| Dimension S9 thread diameter (profiled rail systems) |
M2,5
|
| Height of guide rail H2 |
14.1
mm |
Další vlastnosti
| Version |
Ball rail system
|
| Nominal size |
15
|
| Format |
FLS - flange, long, standard height
|
| Model |
Compact Line ball runner block
|
| Preload class |
C2 - Medium preload
|
| Accuracy class |
H - Highly accurate
|
| Seal |
SS - Standard seal
|
| Ball chain |
Without ball chain (standard)
|
| Lubrication |
Pre-lubricated, preserved
|
| Maximum acceleration rate amax |
500
m/s² |
| Note: Max. acceleration amax |
If Fcomb◡ 2.8 • Fpr : amax = 50 m/s2
|
| Maximum permissible linear speed vmax |
5
m/s |
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Note: permissible ambient temperature (min. ... max.) |
100°C admissible for a short time.
|
| Friction coefficient μ |
0.002 ... 0.003
|
| Note: friction coefficient μ |
Friction coefficient µ without seal friction
|
| Dynamic load capacity C50 |
14500
N |
| Note: dynamic load capacity C50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic load capacity C100 |
11500
N |
| Note: dynamic load capacity C100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static load capacity C0 |
16800
N |
| Dynamic torsional moment load capacity Mt50 |
130
Nm |
| Note: Dynamic torsional moment load capacity Mt50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic torsional moment load capacity Mt100 |
100
Nm |
| Note: Dynamic torsional moment load capacity Mt100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static torsional moment load capacity Mt0 |
150
Nm |
| Dynamic longitudinal moment load capacity ML50 |
140
Nm |
| Note: Dynamic longitudinal moment load capacity ML50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic longitudinal moment load capacity ML100 |
110
Nm |
| Note: Dynamic longitudinal moment load capacity ML100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static longitudinal moment load capacity ML0 |
160
Nm |
| Pitch T guide rail |
60
mm |
| Dimension A (profiled rail systems) |
47
mm |
| Dimension A1 (profiled rail systems) |
23.5
mm |
| Dimension A2 (profiled rail systems) |
15
mm |
| Dimension A3 (profiled rail systems) |
16
mm |
| Dimension B (profiled rail systems) |
72.6
mm |
| Dimension B tolerance (profiled rail systems) |
+ 0.5
|
| Dimension B1 |
53.6
mm |
| Dimension E1 |
38
mm |
| Dimension E2 |
30
mm |
| Dimension E8 (profiled rail systems) |
20.5
mm |
| Dimension E9 (profiled rail systems) |
7.8
mm |
| Dimension H |
24
mm |
| Dimension H1 (profiled rail systems) |
19.9
|
| Dimension H2 (profiled rail systems) |
14.1
mm |
| Dimension K1 (profiled rail systems) |
15.2
mm |
| Dimension K2 (profiled rail systems) |
16.3
mm |
| Dimension K3 (profiled rail systems) |
3.8
mm |
| Dimension K4 (profiled rail systems) |
3.8
mm |
| Dimension N1 (profiled rail systems) |
5.2
mm |
| Dimension N6 (profiled rail systems) |
8.55
mm |
| Dimension N6 tolerance (profiled rail systems) |
± 0.5
|
| Dimension S1 (profiled rail systems) |
4.3
mm |
| Dimension S2 (profiled rail systems) |
M5
|
| Dimension S5 (profiled rail system) |
4.5
mm |
| Dimension S9 |
M2,5x5 mm
|
| Dimension S9 lead |
5
mm |
| Dimension T |
60
mm |
| Dimension T1 min |
12
mm |
| Dimension V1 |
5
mm |
Popis

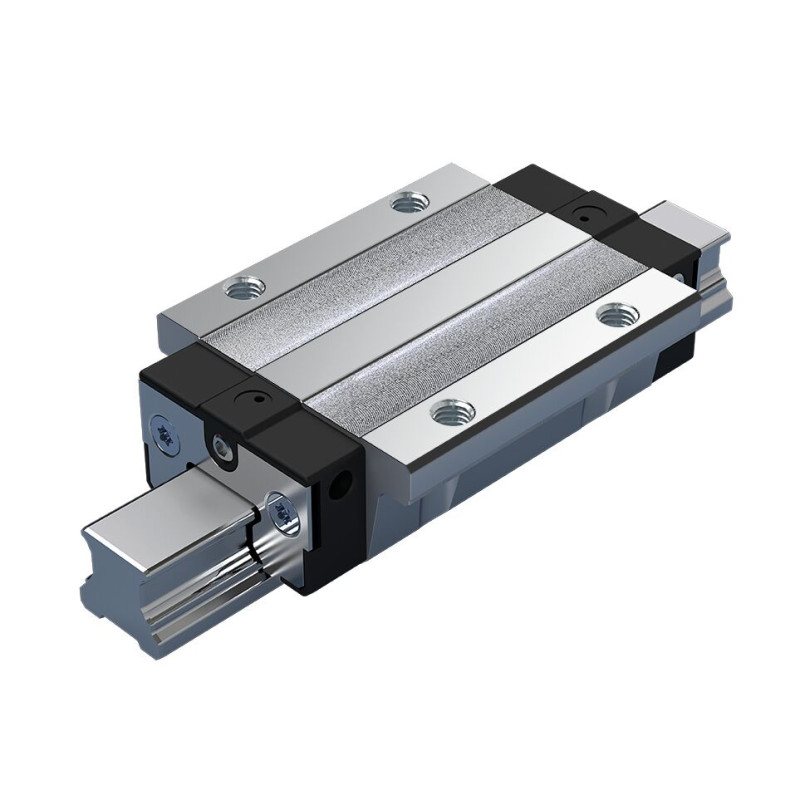

Kuličkový vozík Compact Line je přesný a vyznačuje se těmito parametry:
Konstrukční velikost 15
Konstrukce FLS – příruba dlouhá standardní výška
Těleso vodicí kladky z uhlíkové oceli CS
Třída předpětí C2: Střední předpětí
Třída přesnosti H: Vysoce přesné
bez kuličkového řetězu
Poprvé namazáno tukem a konzervováno
Těleso vodicí kladky ve standardním provedení
Celková délka vodicí kladky = 72,6 mm
Konstrukce z vyměnitelných součástek: Vodicí kladky a vodicí kolejnice lze v každé třídě přesnosti vzájemně kombinovat.
Funkce
- Oblast použití: V případě vysokých požadavků na tuhost
- Nosnost: Velmi vysoká
- Sešroubování shora a zdola
