Fyzická velikost a hmotnost
| Net weight |
0.891
kg |
| Outer diameter D |
62
mm |
Další vlastnosti
| Nominal size |
45
|
| Dynamic load capacity C |
4500
N |
| Maximum permissible linear speed vmax |
2
m/s |
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Operating temperature (min. … max.) |
-30 °C ... +100 °C
|
| Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
|
| Static load capacity C0 |
9000
N |
| Maximum operating temperature |
+ 100
|
| Minimum operating temperature |
- 30
|
| Product information |
Ball transfer unit with bottom hole on request
|
| Dimension b |
10.5
mm |
| Tolerance c |
+ 0.2
|
| Dimension D |
62
mm |
| Tolerance D |
±0.095
|
| Dimension D1 |
75
mm |
| Dimension dW |
44.45
mm |
| Dimension h |
19
mm |
| Dimension H |
53.7
mm |
| Tolerance h |
± 0.4
|
Popis

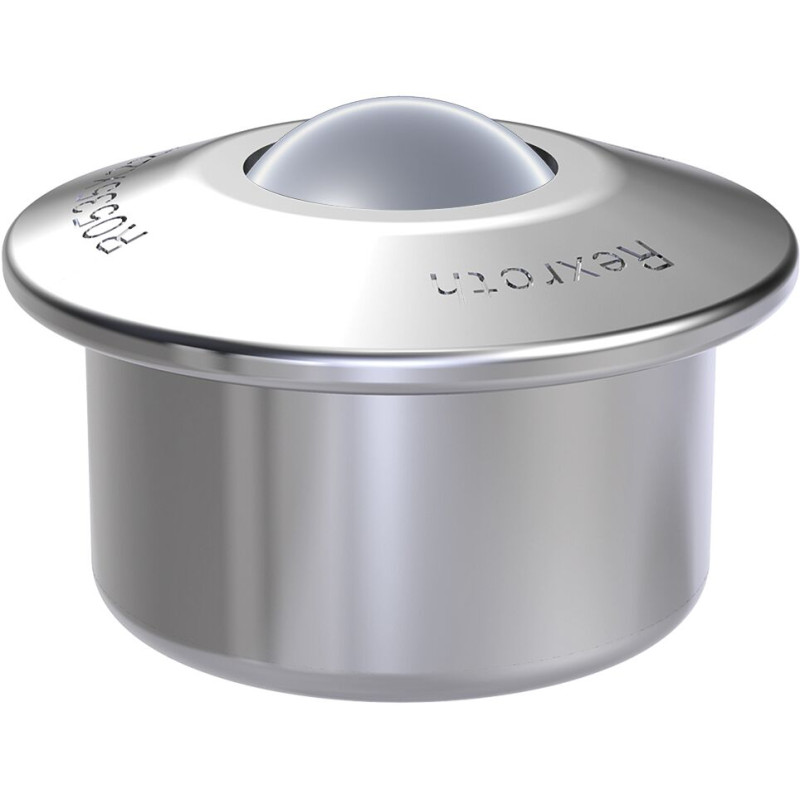

Kuličkový váleček se zesíleným ocelovým pouzdrem
Všechny díly pozinkované, kuličky z korozivzdorné oceli
Velikost = 45
S plstěným těsnicím kroužkem, naolejováno
Funkce
- S pouzdrem z ocelového plechu
- Zesílené pouzdro a víko
- Pro velké zatížení nárazem
- Všechny díly pozinkované
- Kuličky z nerezavějící oceli 1.3541 / 1.4034
