Fyzická velikost a hmotnost
| Net weight |
8
kg |
| Outer diameter D |
130
mm |
Další vlastnosti
| Nominal size |
76
|
| Dynamic load capacity C |
20000
N |
| Maximum permissible linear speed vmax |
2
m/s |
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Operating temperature (min. … max.) |
-30 °C ... +100 °C
|
| Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
|
| Static load capacity C0 |
50000
N |
| Maximum operating temperature |
+ 100
|
| Minimum operating temperature |
- 30
|
| Product information |

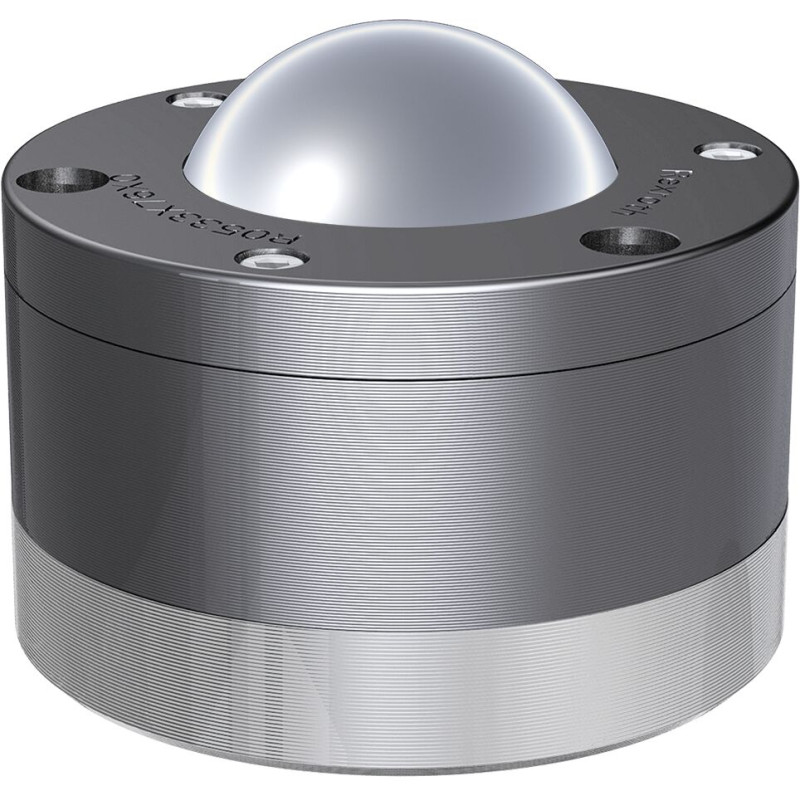

Ball transfer unit with bottom hole and lube connection
|
| Dimension D |
130
mm |
| Tolerance D |
±0.08
|
| Dimension dW |
76.2
mm |
| Dimension G thread |
M8x1
|
| Dimension h |
23
mm |
| Dimension H |
103
mm |
| Tolerance H |
± 0.2
|
| Dimension h1 |
25
mm |
| Dimension H1 (profiled rail systems) |
69
|
| Dimension S |
9
mm |
| Dimension S1 (profiled rail systems) |
15
mm |
| Dimension Tk |
110
mm |
Popis
Kuličkový váleček s pouzdrem z masivní oceli
Kryt a pouzdro pozinkované, kuličky z oceli pro valivá ložiska
Velikost = 76
Otvor ve dně
S plstěným těsnicím kroužkem, naolejováno
S mazací přípojkou
Funkce
- S pouzdrem z masivní oceli a víkem
- Pro velmi vysoké zatížení
- Víko a pouzdro pozinkované
- Kuličky z oceli na valivá ložiska 1.3505
- S plstěným těsnicím kroužkem
