Fyzická velikost a hmotnost
| Net weight |
0.277
kg |
| Outer diameter D |
45
mm |
Další vlastnosti
| Nominal size |
30
|
| Dynamic load capacity C |
2500
N |
| Maximum permissible linear speed vmax |
2
m/s |
| Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
|
| Operating temperature (min. … max.) |
-30 °C ... +100 °C
|
| Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil may have to be washed out.
|
| Static load capacity C0 |
5000
N |
| Maximum operating temperature |
+ 100
|
| Minimum operating temperature |
- 30
|
| Product information |

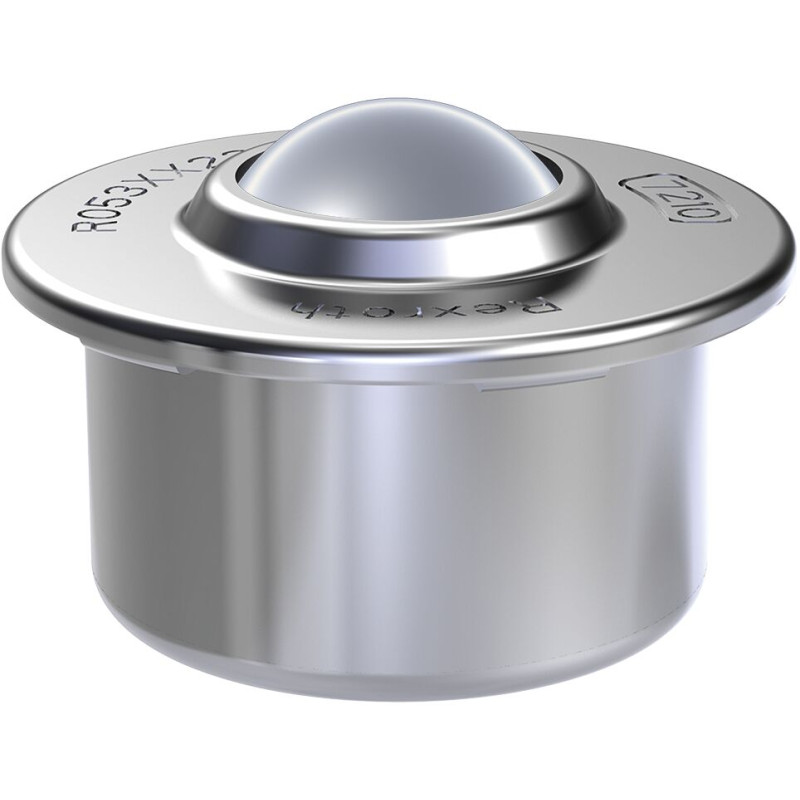

Ball transfer unit with bottom hole
|
| Dimension a |
3.7
mm |
| Dimension b |
7.9
mm |
| Tolerance c |
+ 0.2
|
| Dimension D |
45
mm |
| Tolerance D |
±0.08
|
| Dimension D1 |
55
mm |
| Dimension dW |
30.162
mm |
| Dimension h |
13.8
mm |
| Dimension H |
37.5
mm |
| Tolerance h |
± 0.3
|
Popis
Kuličkový váleček
Kryt a pouzdro pozinkované, kuličky z oceli pro valivá ložiska
Velikost = 30
Otvor ve dně
S plstěným těsnicím kroužkem, naolejováno
Funkce
- S pouzdrem z ocelového plechu
- Nejmenší kuličkový váleček
- Pro všeobecné použití
- Víko a pouzdro pozinkované
- Kuličky z oceli na valivá ložiska 1.3505
