R349939300
KOLBEN EMC50/63 &

R349939300
  • Dostupnost: na dotaz
  • Váha: 0.34 KG
  • Číslo dílu: R349939300
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R349939300
Fyzická velikost a hmotnost
Net weight 342.175 g
Další vlastnosti

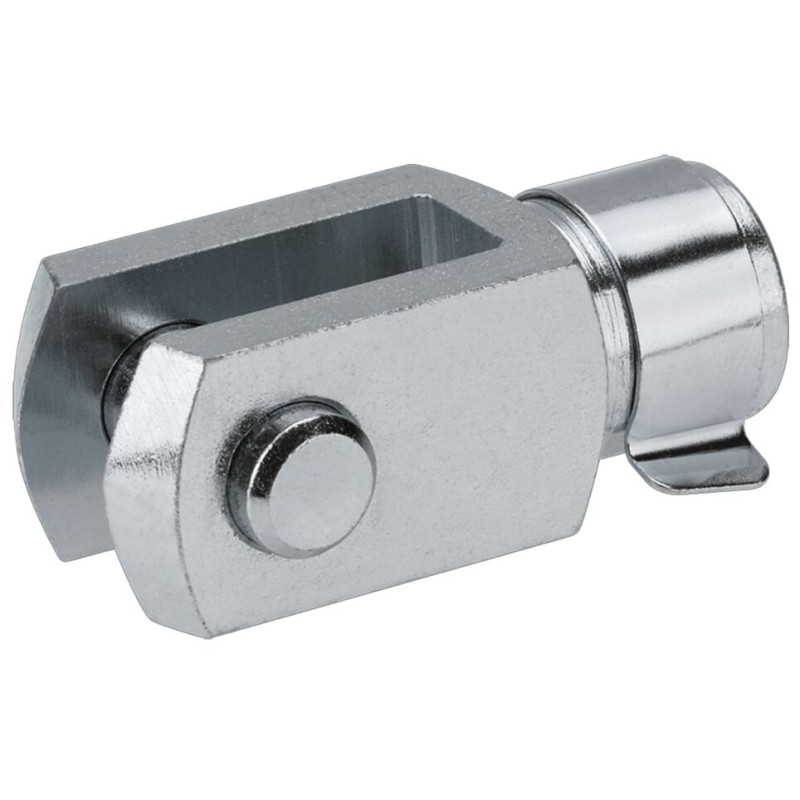

Fastening elements for electromechanical cylinders Fork clevis with internal thread
Nominal size 5063
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension BL 39 mm
Dimension CE 64 mm
Dimension CK e11 16 mm
Dimension CL 32 mm
Dimension CM 16 mm
Dimension D1 26 mm
Dimension ER 19
Dimension KK M16x1.5 mm
Dimension L1 24 mm
Dimension LE 32 mm
Funkce
  • Skupina 2, volba 02
  • Materiál: Ocel, pozinkovaná
CAD (2)
File R349939300.stp (ALL)
File R349939300.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
