R349939200
KOLBEN EMC40 &

R349939200
  • Dostupnost: na dotaz
  • Váha: 0.15 KG
  • Číslo dílu: R349939200
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R349939200
Fyzická velikost a hmotnost
Net weight 151.7 g
Další vlastnosti

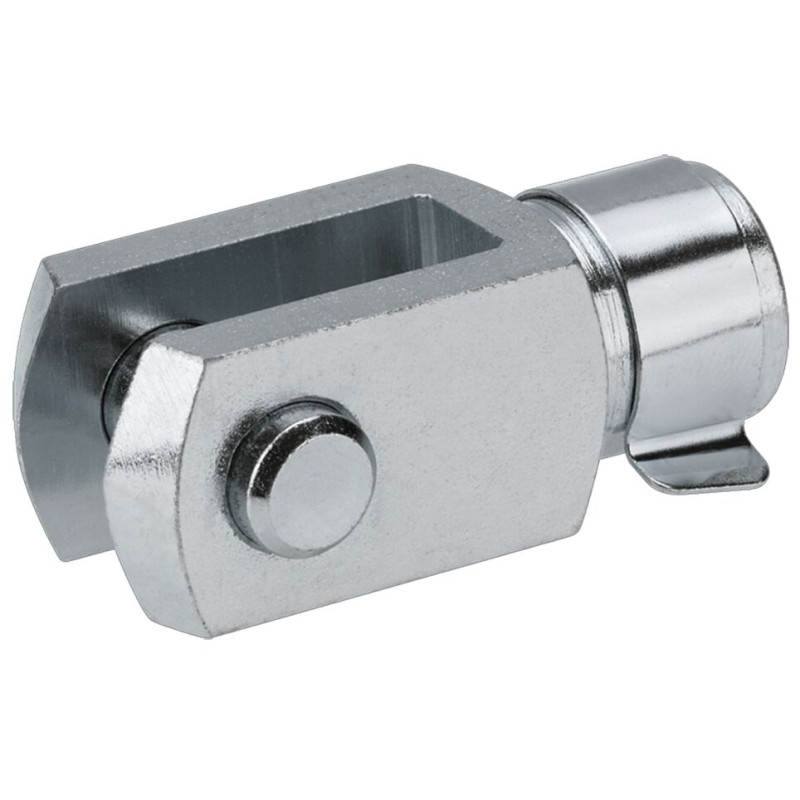

Fastening elements for electromechanical cylinders Fork clevis with internal thread
Nominal size 40
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension BL 31 mm
Dimension CE 48 mm
Dimension CK e11 12 mm
Dimension CL 24 mm
Dimension CM 12 mm
Dimension D1 20 mm
Dimension ER 14
Dimension KK M12x1.25 mm
Dimension L1 18 mm
Dimension LE 24 mm
Funkce
  • Skupina 2, volba 02
  • Materiál: Ocel, pozinkovaná
CAD (2)
File R349939200.igs (ALL)
File R349939200.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
