Fyzická velikost a hmotnost
| Net weight |
2.015
kg |
| Shaft diameter d |
60
mm |
| Length of linear bushing |
125
mm |
| Outer diameter D |
90
mm |
Další vlastnosti
| Version |
Standard
|
| Format of linear bushings |
– Closed
|
| Series |
Standard (metal)
|
| Type |
Linear bushing
|
| Seal |
Without wiper seals
|
| Lubrication |
Not lubricated
|
| Maximum dynamic load capacity Cmax |
12100
N |
| Maximum acceleration rate amax |
50
m/s² |
| Maximum permissible linear speed vmax |
2
m/s |
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Note: permissible ambient temperature (min. ... max.) |
Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.
|
| Friction coefficient μ |
0.001 ... 0.004
|
| Note: friction coefficient μ |
Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
|
| Footnote breakaway force |
One wiper seal: Multiply value with factor 0.5
|
| Footnote maximum dynamic load capacity Cmax |
The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
|
| Footnote minimum dynamic load capacity Cmin |
The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
|
| Footnote shaft radial clearance h6 |
Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7.
|
| Footnote friction force FR |
One wiper seal: Multiply value with factor 0.5
|
| Breakaway force |
36
N |
| Dimension C h12 |
125
mm |
| Dimension C1 H13 |
101.3
mm |
| Dimension C2 |
3.15
mm |
| Dimension D |
90
mm |
| Dimension D1 |
85
mm |
Popis

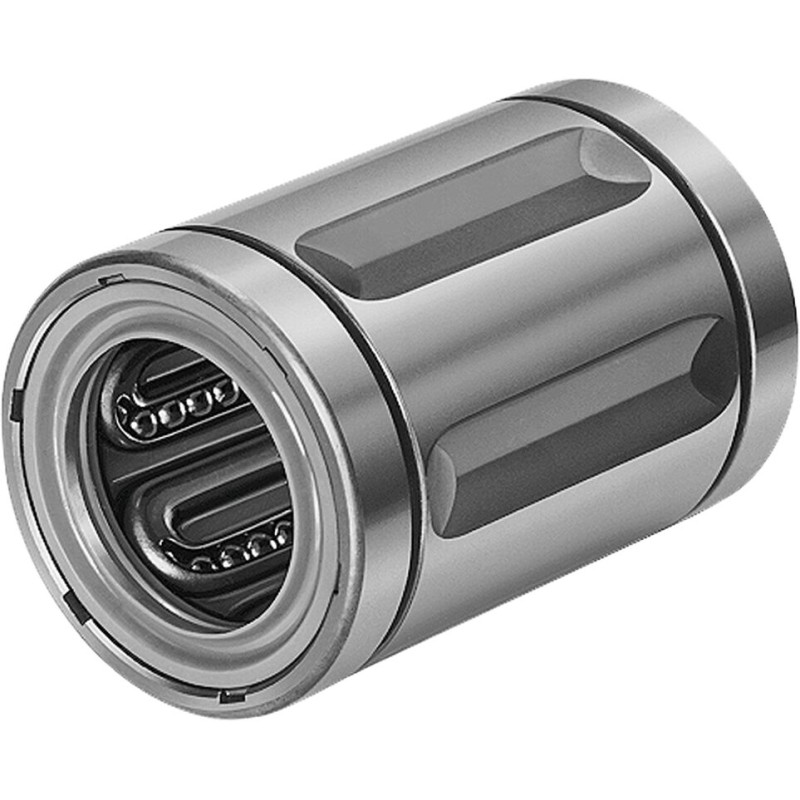

Kuličkové pouzdro Standard
Standard (kov)
Zavřený
Průměr hřídele d = 60
Bez těsnění
Provedení: Normální
Funkce
- Odolné celokovové provedení s klecí z oceli pro drsné podmínky a hrubé znečištění
- Mnoho dutin jako rezervoár maziva pro dlouhé intervaly mazání nebo mazání po celou dobu používání
- Vodicí klec z oceli (průměr hřídele 3, 4 a 10 s plastovou klecí z POM a průměr hřídele 5 a 8 z PA)
- Zavřené, pro samonosné hřídele
- Kuličky z oceli na valivá ložiska
- Pro použití při zpracování dřeva, slévárnách, cementárnách
- Dutiny absorbují případnou vniklou nečistotu, a tím zabrání zablokování kuličkového pouzdra.
- Provedení bez těsnicích kroužků je s integrovanými ocelovými přídržnými kroužky; počínaje průměrem hřídele 12 jsou přípustné vyšší teploty
- Kalené a broušené pouzdro
