Fyzická velikost a hmotnost
| Net weight |
23.987
g |
| Shaft diameter d |
16
mm |
Další vlastnosti
| Version |
Standard
|
| Format of linear bushings |
– Closed
|
| Series |
Compact
|
| Seal |
1 integrated wiper seal
|
| Note: friction coefficient μ |
Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
|
| Footnote breakaway force |
One wiper seal: Multiply value with factor 0.5
|
| Footnote maximum dynamic load capacity Cmax |
The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
|
| Footnote minimum dynamic load capacity Cmin |
The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
|
| Footnote friction force FR |
1. One wiper seal: Multiply value with factor 0.5 2. Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
|
Popis

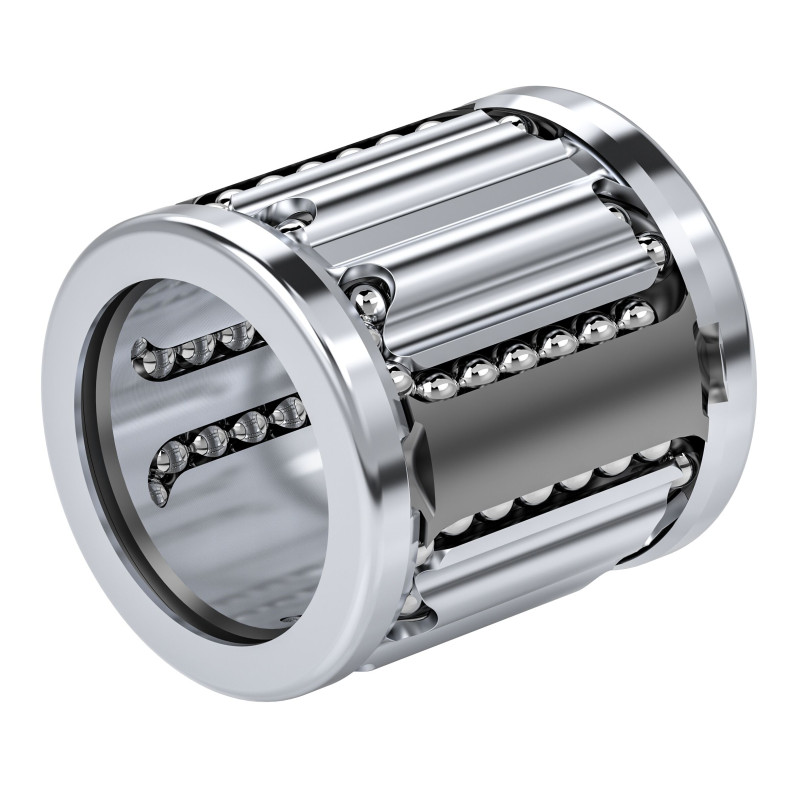

Kuličkové pouzdro Compact
Průměr hřídele d = 16
S jedním těsněním
Radiální vzduch: Omezen
Provedení: Normální
Bez mazání
| Název |
Číslo dílu |
| R133181610 |
