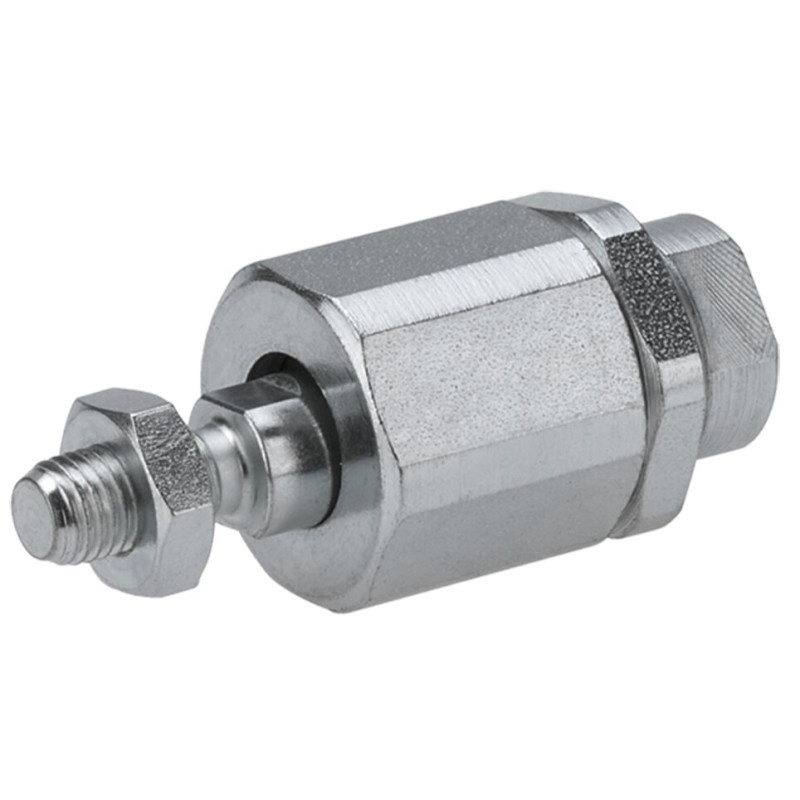

R349938000
FLEXO EMC40 &

R349938000
  • Dostupnost: na dotaz
  • Váha: 0.23 KG
  • Číslo dílu: R349938000
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R349938000
Fyzická velikost a hmotnost
Net weight 0.231 kg
Další vlastnosti
Fastening elements for electromechanical cylinders Flexible coupling
Nominal size 40
Footnote max. dynamic load Fmax EMC
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension axial clearance 0.05 mm ... 0.5 mm
Dimension of axial clearance max. 0.5 mm
Dimension of axial clearance min. 0.05 mm
Dimension B1 7 mm
Dimension D1 22 mm
Dimension D2 32 mm
Dimension D3 14 mm
Dimension F 22 mm
Dimension KK M12x1.25 mm
Dimension L 75 mm
Dimension L tolerance ± 2
Dimension L2 24 mm
Dimension L3 13 mm
Dimension L3 tolerance ± 1
Dimension RV 0.7 mm
Dimension SW1 19 mm
Dimension SW2 12 mm
Dimension SW3 19 mm
Dimension SW4 30 mm
Funkce
  • Skupina 2, volba 04
  • Materiál: Ocel, pozinkovaná
  • Radiální vůle 0 ... 2 mm
CAD (2)
File R349938000.igs (ALL)
File R349938000.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
