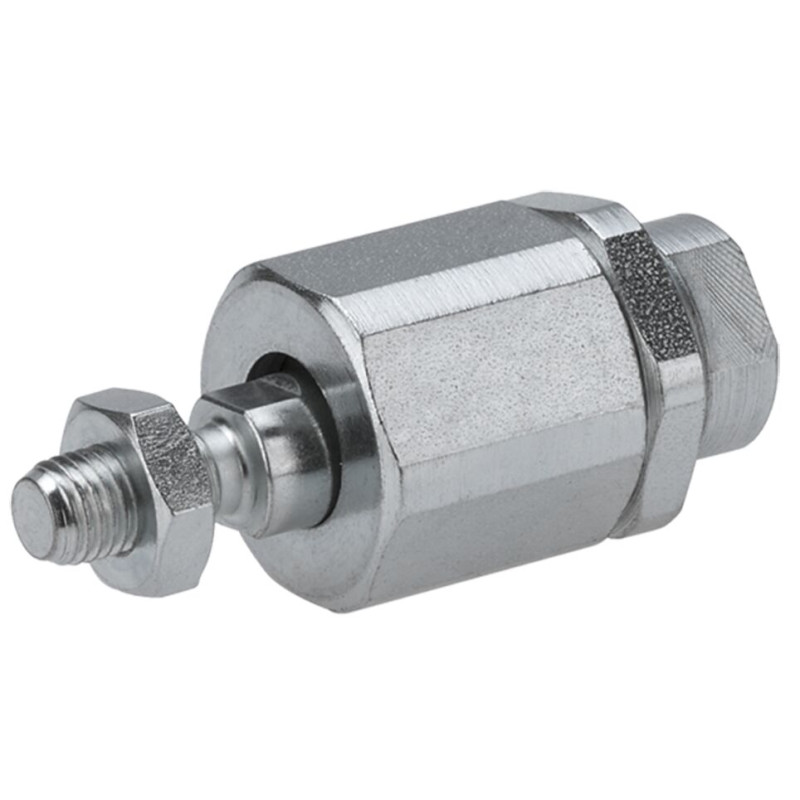

R349937900
FLEXO EMC32 &

R349937900
  • Dostupnost: na dotaz
  • Váha: 0.22 KG
  • Číslo dílu: R349937900
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R349937900
Fyzická velikost a hmotnost
Net weight 0.22 kg
Další vlastnosti
Fastening elements for electromechanical cylinders Flexible coupling
Nominal size 32
Footnote max. dynamic load Fmax EMC
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension axial clearance 0.05 mm ... 0.5 mm
Dimension of axial clearance max. 0.5 mm
Dimension of axial clearance min. 0.05 mm
Dimension B1 6 mm
Dimension D1 22 mm
Dimension D2 32 mm
Dimension D3 14 mm
Dimension F 23 mm
Dimension KK M10x1.25 mm
Dimension L 74.5 mm
Dimension L tolerance ± 2
Dimension L2 23 mm
Dimension L3 7.5 mm
Dimension L3 tolerance ± 1
Dimension RV 0.7 mm
Dimension SW1 19 mm
Dimension SW2 12 mm
Dimension SW3 17 mm
Dimension SW4 30 mm
Funkce
  • Skupina 2, volba 04
  • Materiál: Ocel, pozinkovaná
  • Radiální vůle 0 ... 2 mm
CAD (2)
File R349937900.stp (ALL)
File R349937900.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
