Fyzická velikost a hmotnost
Další vlastnosti
| Nominal size |
8 x 2,5R x 1,588 - 3
|
| Series |
Miniature series
|
| Dynamic load capacity C |
2640
N |
| Note: dynamic load capacity C |
The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
|
| Maximum permissible linear speed vmax (m/min) |
15
m/min |
| Note: maximum permissible speed vmax |
See "Characteristic speed d0 • n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed ncr" (see General Technical Notes and Information, "Project planning notes")
|
| Operating temperature (min. … max.) |
-10 °C ... +80 °C
|
| Storage temperature (min. … max.) |
-15 °C ... +80 °C
|
| Direction of lead |
Right
|
| Nut type |
FEM-E-S single nut with flange
|
| Note: permissible operating temperature (min. ... max.) |
Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
|
| Screw drive seal |
With seal
|
| Static load capacity C0 |
2800
N |
| Note: static load capacity C0 |
The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
|
| Category |
A
|
| Maximum operating temperature |
+ 80
|
| Bearing temperature max |
+ 80
|
| Minimum operating temperature |
- 10
|
| Bearing temperature min |
- 15
|
| Dimension d1 |
7.5
mm |
| Dimension D1 g6 |
16
mm |
| Dimension d2 |
6.3
mm |
| Dimension D5 |
30
mm |
| Dimension D6 |
23
mm |
| Dimension D7 |
3.4
mm |
| Dimension L |
16
mm |
| Dimension L10 |
8
mm |
| Dimension L3 |
8
mm |
| Dimension L4 |
8
mm |
| Angle φ |
30
° |
Popis

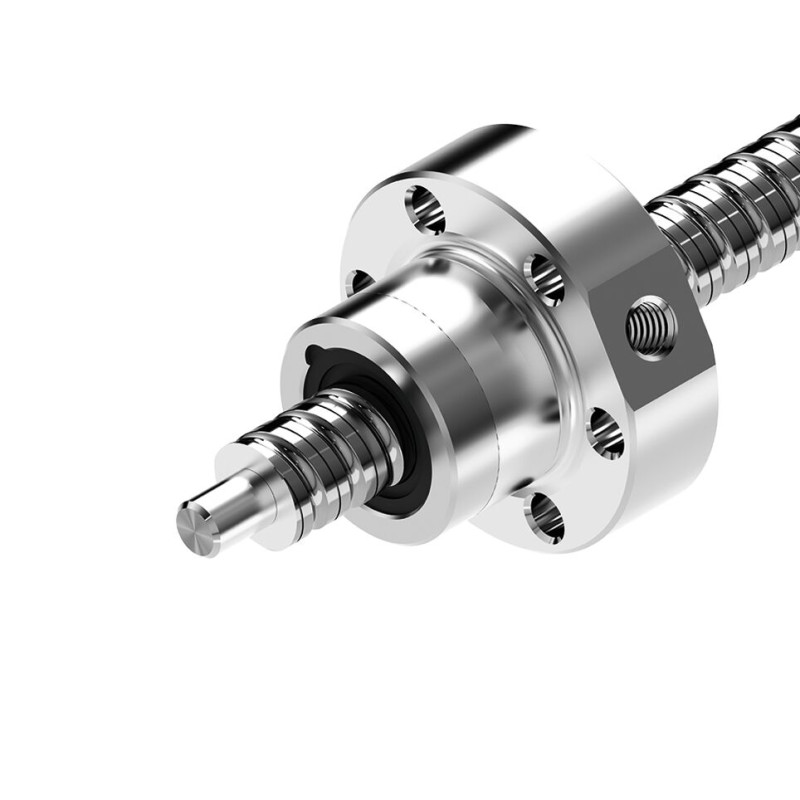

Jednoduchá přírubová matice FEM-E-S se standardním těsněním a standardní axiální vůlí
Jmenovitý průměr d0 = 8
Stoupání P = 2,5 (vpravo)
Průměr kuličky Dw = 1,588
Počet otáček i = 3
Funkce
- Rozměry připojení Rexroth
- S těsněními
- S těsněními
- Třída předpětí: C0, C00, C1
- Třída tolerance: T5, T7, T9
