Fyzická velikost a hmotnost
| Diameter d0 |
40
|
| Net weight |
1.27
kg |
Další vlastnosti
| Bearing temperature max |
+ 80
|
| Bearing temperature min |
- 15
|
| Category |
A
|
| Dimension d1 |
38
mm |
| Dimension D1 g6 |
63
mm |
| Dimension d2 |
33.8
mm |
| Dimension D5 |
93
mm |
| Dimension D6 |
78
mm |
| Dimension D7 |
9
mm |
| Dimension L |
75
mm |
| Dimension L10 |
60
mm |
| Dimension L14 |
70
mm |
| Dimension L3 |
15
mm |
| Dimension L4 |
25
mm |
| Dimension Sx |
5
mm |
| Direction of lead |
Right
|
| Dynamic load capacity C |
59900
N |
| Hole pattern |
BB1
|
| Maximum operating temperature |
+ 80
|
| Maximum permissible linear speed vmax (m/min) |
45
m/min |
| Minimum operating temperature |
- 10
|
| Nominal size |
40 x 12R x 6 - 4
|
| Note: dynamic load capacity C |
The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
|
| Note: maximum permissible speed vmax |
See "Characteristic speed d0 • n" (section Technical notes) and "Critical speed ncr" (section Calculation and examples)
|
| Note: permissible operating temperature (min. ... max.) |
Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
|
| Note: static load capacity C0 |
The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
|
| Nut type |
FEM-E-B single nut with flange
|
| Operating temperature (min. … max.) |
-10 °C ... +80 °C
|
| Screw drive seal |
With seal
|
| Series |
Standard series
|
| Static load capacity C0 |
86200
N |
| Storage temperature (min. … max.) |
-15 °C ... +80 °C
|
Popis

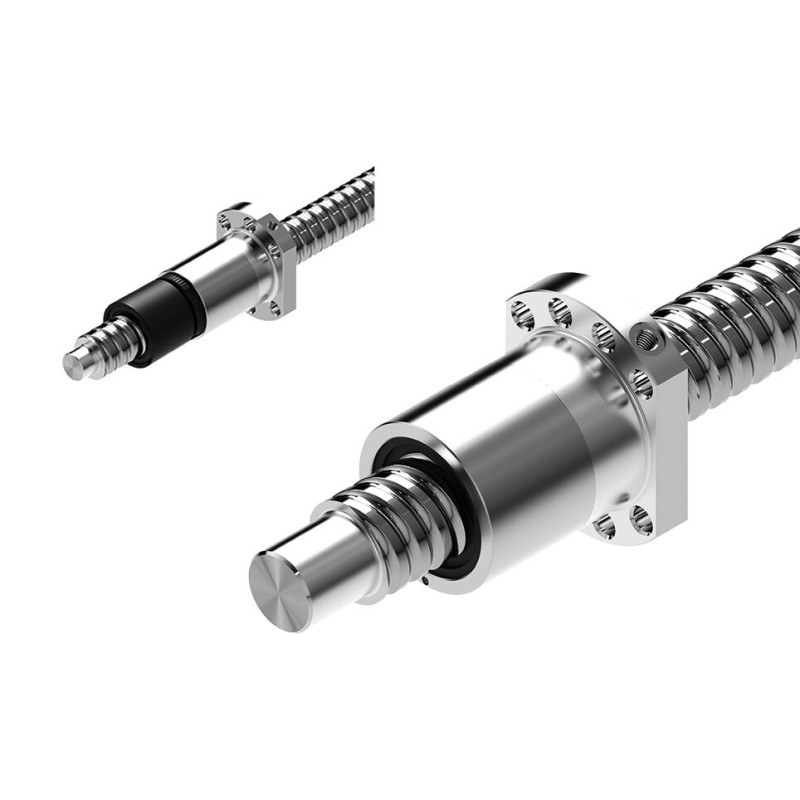

Jednoduchá přírubová matice FEM-E-B se standardním těsněním a standardní axiální vůlí
Jmenovitý průměr d0 = 40
Stoupání P = 12 (vpravo)
Průměr kuličky Dw = 6
Počet otáček i = 4
Funkce
- Třída předpětí: C0, C00, C1, C2, C3
- Připojovací rozměry podobně jako DIN 69051, část 5 Přírubová forma B.
- S těsněními
- Částečně v levém provedení
- Třída předpětí: C0, C00, C1, C2, C3
- Třída tolerance: T3 (pro velikosti podle přehledu výrobků Vřetena, viz obecné technické poznámky a informace, „Popis výrobku“), T5, T7, T9
