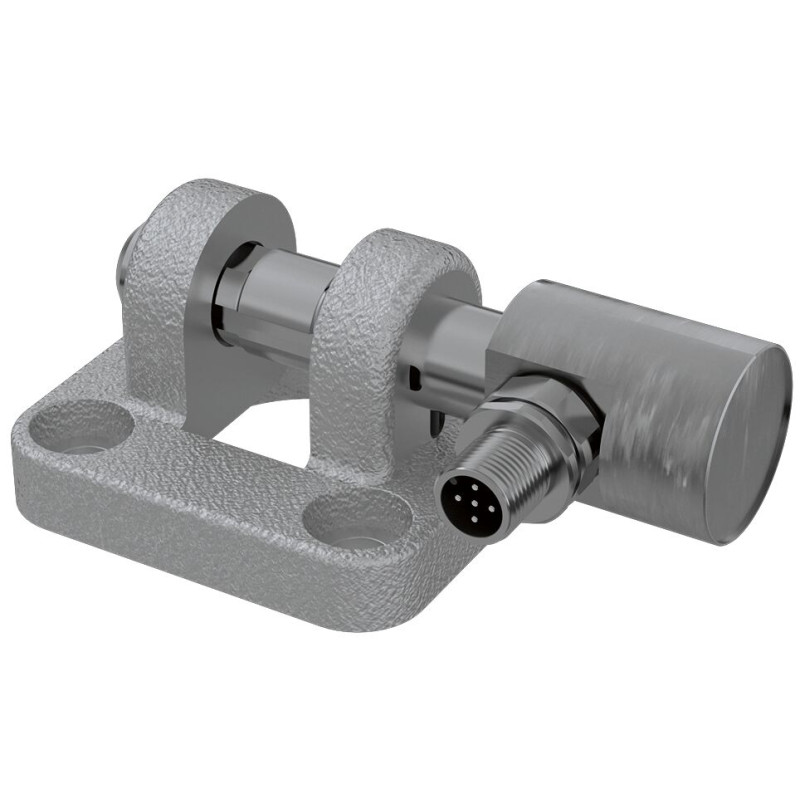

R15615A007
EMC80

R15615A007
  • Dostupnost: na dotaz
  • Váha: 0.61 KG
  • Číslo dílu: R15615A007
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R15615A007
Fyzická velikost a hmotnost
Net weight 0.88 g
Bandwidth 2.5 kHz
Bandwidth with tolerance 2,5 kHz ±0,2
Bandwidth tolerance ± 0.2
Cable diameter D 5.9 mm
Cable diameter D tolerance ± 0.2
Další vlastnosti
Electrical accessories for electromechanical cylinders Force sensors
Connection type 1 Female connector, M12, 4-pin
Connection type 2 Flying leads
Nominal size 80
Connection Connector M12x1
Power supply voltage 24 V
Operating load (of the measuring range) 150 %
Operating temperature (min. … max.) -20 °C ... +60 °C
Output signal 0 V
Output signal (measuring range) with tolerance -10 ... +10 V ±0,2
Output signal (measuring range) tolerance ± 0.2
Output signal with tolerance 0 V ±0,03
Output signal tolerance ± 0.03
Cable cross-section 4 x 0.34 mm²
Permissible ambient temperature (min. ... max.) -25 °C ... +80 °C
Rated voltage 250 V
Rated current 4 A
Shield yes
Dynamic bending radius 5xD
Static bending radius 10xD
Bending cycles 2 million
Breaking load (of the measuring range) 300 %
Hardness 38 HRC
Hysteresis (of the measuring range) ± 0.2
Cable color Black
Cable material PUR
Compensated temperature +10 °C ... +40 °C
Maximum operating temperature + 60
Measurement range 22 kN
Measurement inaccuracy ± 0.11
Minimum operating temperature - 20
Non-linearity (of the measuring range) ± 0.5
Zero setting function (tare) 7.2 V ... 24 V
Product information with connection cable
Suitable for drag chains Yes
Protection class IP65
Connector outlet angled
Current consumption 25 mA
Temperature drift zero point (of the measuring range per Kelvin) ± 0.05
Temperature drift above measuring range (of the measuring range per Kelvin) ± 0.05
Ambient temperature, in motion -40 °C ... +80 °C
Material of electromechanical cylinders stainless steel
Repeatability (of the measuring range) ± 0.25
Dimension a f8 20 mm
Dimension b 109 mm
Dimension C 67.5 mm
Dimension d 35 mm
Dimension e 28 mm
Funkce
  • Pro tažné a tlakové síly
  • Provedení z nerezavějící ušlechtilé oceli
  • Integrovaný zesilovač
  • Malá teplotní charakteristika
  • Velká dlouhodobá stabilita
  • Velká šoková a vibrační odolnost
  • Pro dynamická nebo statická měření
  • Dobrá reprodukovatelnost
  • Snadná montáž
CAD (2)
File R15615A007.igs (ALL)
File R15615A007.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
