R349938900
EMC80/100 &

R349938900
  • Dostupnost: na dotaz
  • Váha: 0.42 KG
  • Číslo dílu: R349938900
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R349938900
Fyzická velikost a hmotnost
Net weight 417 g
Další vlastnosti

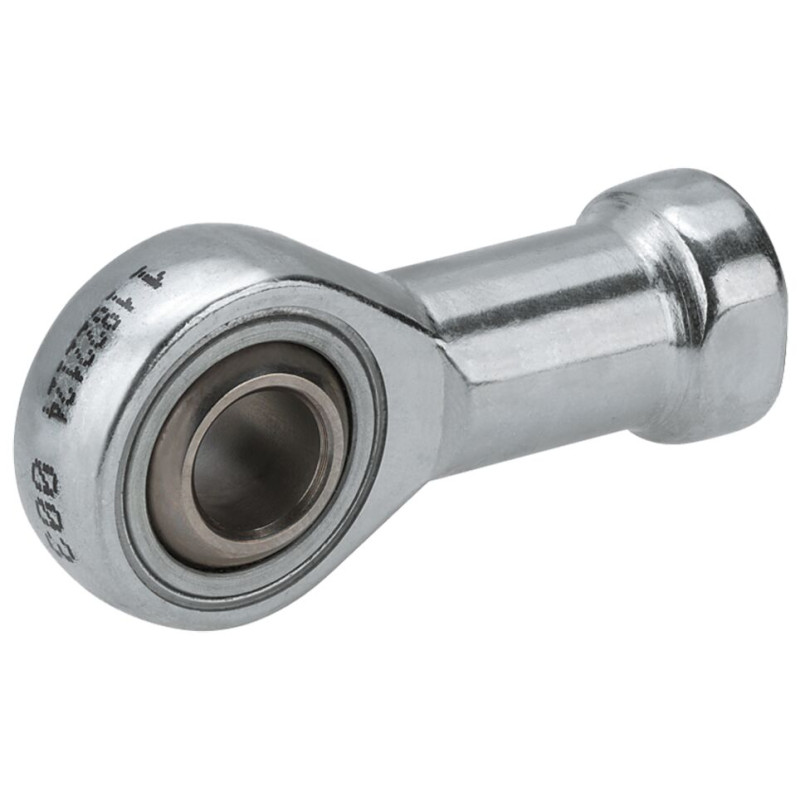

Fastening elements for electromechanical cylinders Female spherical rod end bearing
Nominal size 80100
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension AA 34 mm
Dimension Av min. 30 mm
Dimension CE 77 mm
Dimension CN H7 20 mm
Dimension EN 25 mm
Dimension EN tolerance - 0.1
Dimension EU max. 18.5 mm
Dimension KK M20x1.5 mm
Dimension LF 25 mm
Dimension SW 30 mm
Dimension Z 4 °
Funkce
  • Skupina 2, volba 01
  • Materiál: Ocel, pozinkovaná
CAD (2)
File R349938900.stp (ALL)
File R349938900.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
