R15610A017
EMC80/100

R15610A017
  • Dostupnost: na dotaz
  • Váha: 0.03 KG
  • Číslo dílu: R15610A017
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R15610A017
Fyzická velikost a hmotnost
Net weight 26.365 g
Dimension A thread diameter M10
Dimension D width across flats SW 16
Další vlastnosti

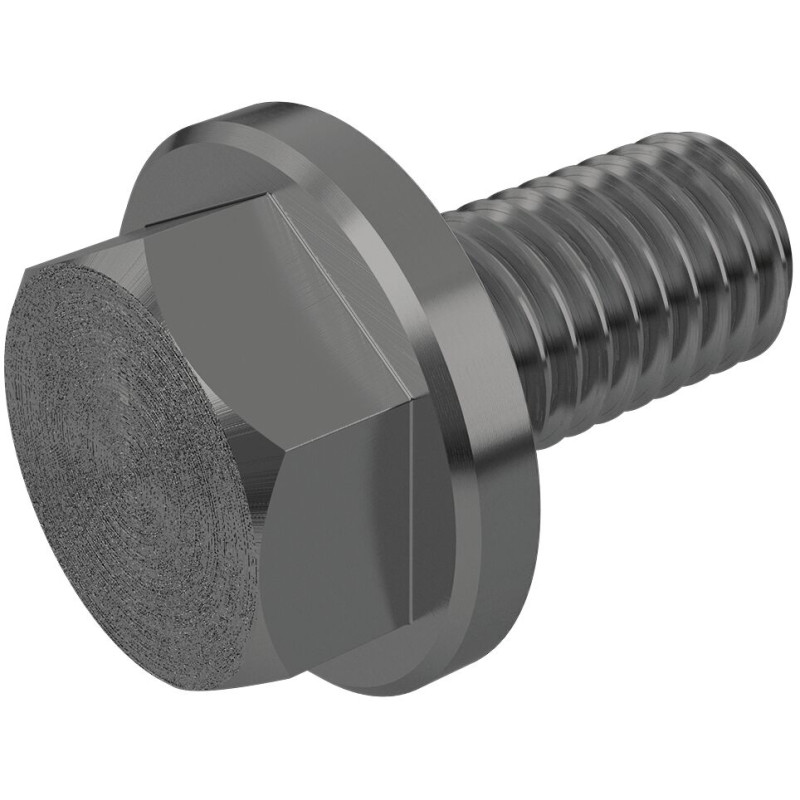

Mechanical accessories for electromechanical cylinders Screw plug for cover
Nominal size 80/100
Compatible EMC-080-NN-2/EMC-100-NN-2
Dimension B (profiled rail systems) 29 mm
Dimension C 8.5
Dimension E 22 mm
Funkce
  • Materiál: odolný proti korozi
CAD (2)
File R15610A017.igs (ALL)
File R15610A017.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
