R349938700
EMC50/63 &

R349938700
  • Dostupnost: na dotaz
  • Váha: 0.22 KG
  • Číslo dílu: R349938700
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R349938700
Fyzická velikost a hmotnost
Net weight 218.1 g
Další vlastnosti

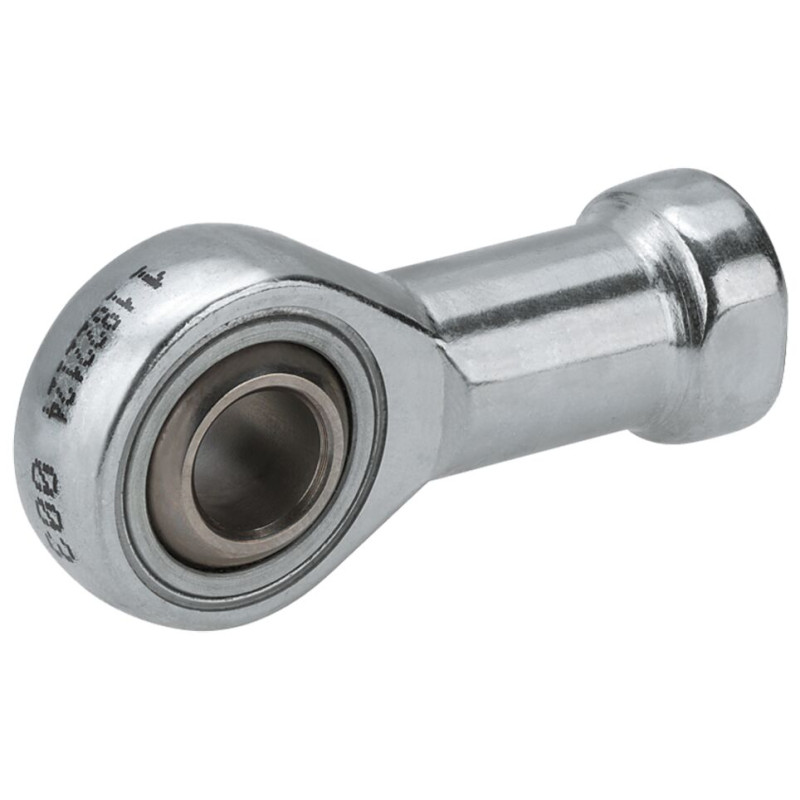

Fastening elements for electromechanical cylinders Female spherical rod end bearing
Nominal size 5063
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension AA 29 mm
Dimension Av min. 24 mm
Dimension CE 64 mm
Dimension CN H7 16 mm
Dimension EN 21 mm
Dimension EN tolerance - 0.1
Dimension EU max. 15.5 mm
Dimension KK M16x1.5 mm
Dimension LF 21 mm
Dimension SW 24 mm
Dimension Z 4 °
Funkce
  • Skupina 2, volba 01
  • Materiál: Ocel, pozinkovaná
CAD (2)
File R349938700.igs (ALL)
File R349938700.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
