R15612B104
EMC40 BG

R15612B104
  • Dostupnost: na dotaz
  • Váha: 0.32 KG
  • Číslo dílu: R15612B104
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R15612B104
Fyzická velikost a hmotnost
Net weight 0.32 kg
Další vlastnosti

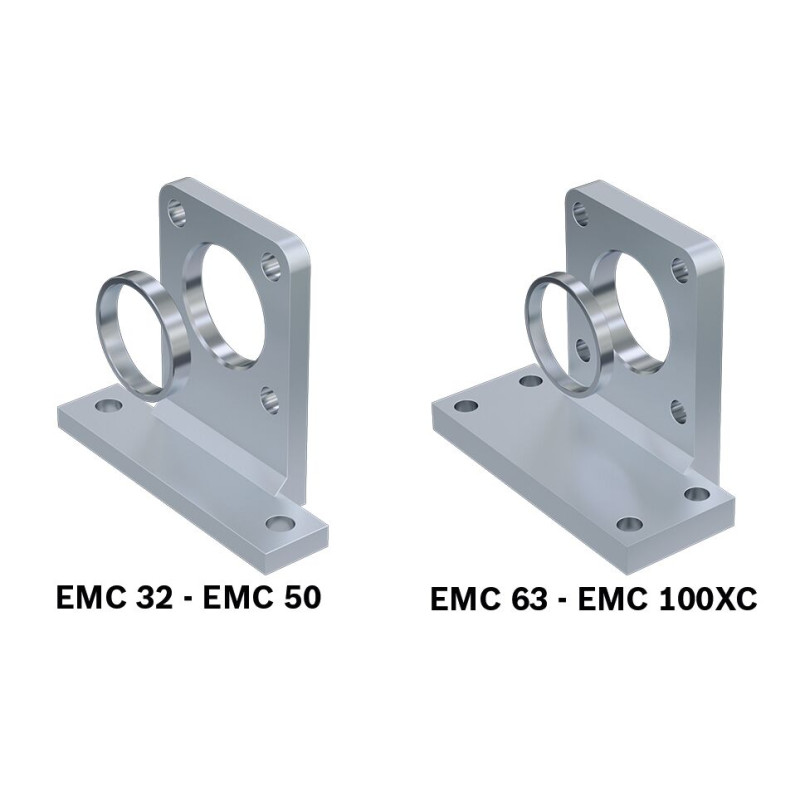

Fastening elements for electromechanical cylinders Foot mounting
Nominal size 40
Footnote mass m including the weight of the centering ring
Material Galvanized steel
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension A (profiled rail systems) 30 mm
Dimension A tolerance ± 0.5
Dimension AT1 7 mm
Dimension AT1 tolerance ± 0.5
Dimension D1 H13 6.6 mm
Dimension D2 H7 35 mm
Dimension D3 H13 9 mm
Dimension E 90 mm
Dimension E tolerance ± 0.5
Dimension E1 71.5 mm
Dimension E1 tolerance ± 0.5
Dimension L 45 mm
Dimension L tolerance ± 0.1
Dimension L1 18 mm
Dimension Tg 38 mm
Dimension TR 75 mm
Dimension TW 53 mm
Dimension TW tolerance ± 0.5
Funkce
  • Skupina 5, volba 05
  • Materiál: Ocel, pozinkovaná
