R349938600
EMC40 &

R349938600
  • Dostupnost: na dotaz
  • Váha: 0.11 KG
  • Číslo dílu: R349938600
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R349938600
Fyzická velikost a hmotnost
Net weight 109.7 g
Další vlastnosti

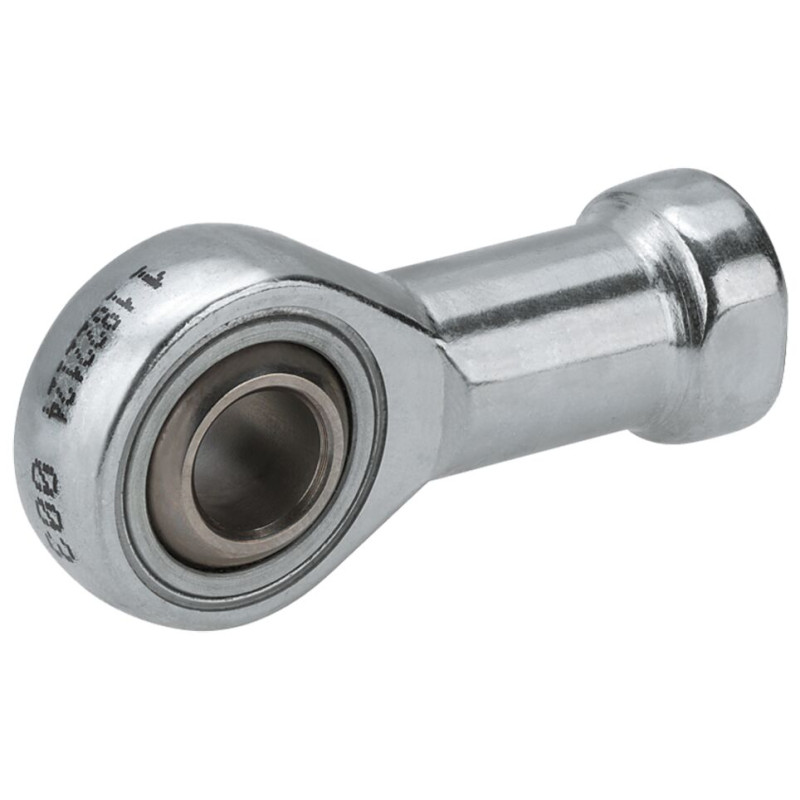

Fastening elements for electromechanical cylinders Female spherical rod end bearing
Nominal size 40
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension AA 22 mm
Dimension Av min. 18 mm
Dimension CE 50 mm
Dimension CN H7 12 mm
Dimension EN 16 mm
Dimension EN tolerance - 0.1
Dimension EU max. 12.5 mm
Dimension KK M12x1.25 mm
Dimension LF 16 mm
Dimension SW 19 mm
Dimension Z 4 °
Funkce
  • Skupina 2, volba 01
  • Materiál: Ocel, pozinkovaná
CAD (2)
File R349938600.stp (ALL)
File R349938600.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
