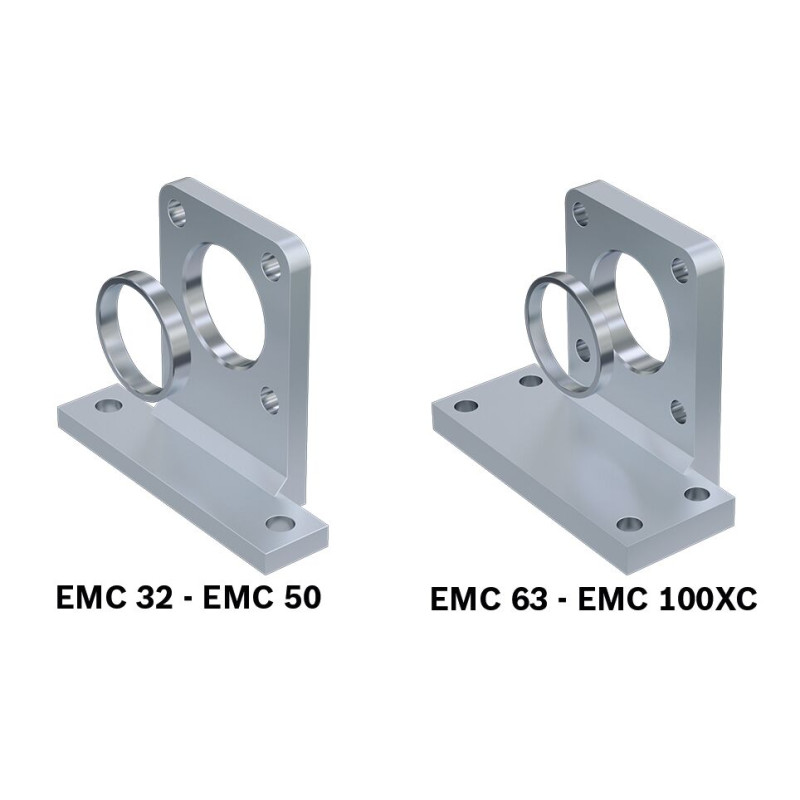

R15611B104
EMC32 BG

R15611B104
  • Dostupnost: na dotaz
  • Váha: 0.24 KG
  • Číslo dílu: R15611B104
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R15611B104
Fyzická velikost a hmotnost
Net weight 0.241 kg
Další vlastnosti
Fastening elements for electromechanical cylinders Foot mounting
Nominal size 32
Footnote mass m including the weight of the centering ring
Material Galvanized steel
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension A (profiled rail systems) 30 mm
Dimension A tolerance ± 0.5
Dimension AT1 6 mm
Dimension AT1 tolerance ± 0.5
Dimension D1 H13 6.6 mm
Dimension D2 H7 30 mm
Dimension D3 H13 6.6 mm
Dimension E 79 mm
Dimension E tolerance ± 0.5
Dimension E1 57.5 mm
Dimension E1 tolerance ± 0.5
Dimension L 34 mm
Dimension L tolerance ± 0.1
Dimension L1 18 mm
Dimension Tg 32.5 mm
Dimension TR 65 mm
Dimension TW 47 mm
Dimension TW tolerance ± 0.5
Funkce
  • Skupina 5, volba 05
  • Materiál: Ocel, pozinkovaná
CAD (2)
File R15611B104.igs (ALL)
File R15611B104.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
