R349938500
EMC32 &

R349938500
  • Dostupnost: na dotaz
  • Váha: 0.08 KG
  • Číslo dílu: R349938500
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R349938500
Fyzická velikost a hmotnost
Net weight 0.075 kg
Další vlastnosti

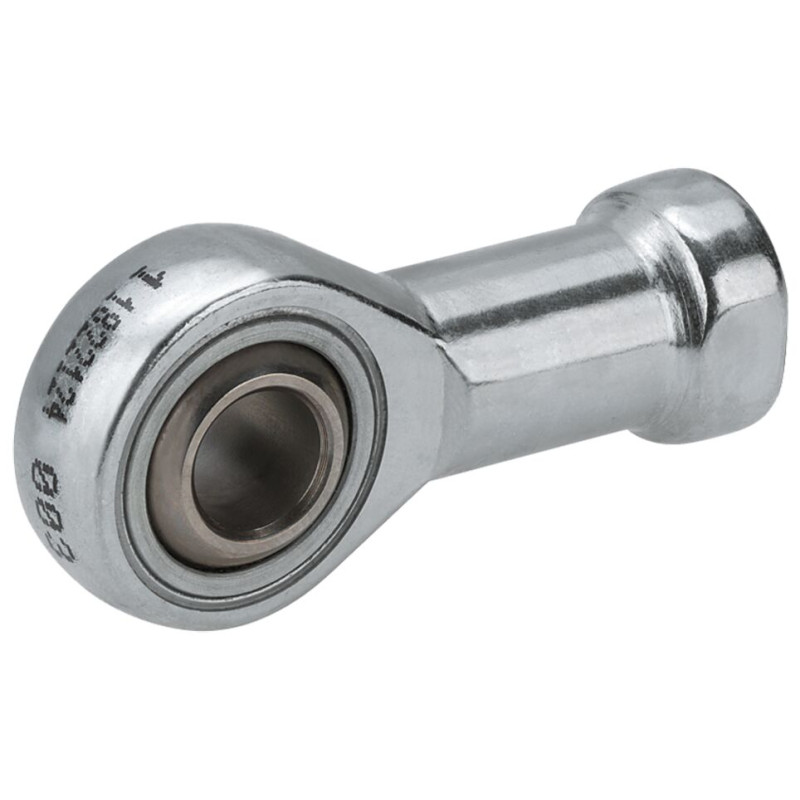

Fastening elements for electromechanical cylinders Female spherical rod end bearing
Nominal size 32
Surface finishing galvanized
Material of electromechanical cylinders Steel
Dimension AA 19 mm
Dimension Av min. 15 mm
Dimension CE 43 mm
Dimension CN H7 10 mm
Dimension EN 14 mm
Dimension EN tolerance - 0.1
Dimension EU max. 11.5 mm
Dimension KK M10x1.25 mm
Dimension LF 14 mm
Dimension SW 17 mm
Dimension Z 4 °
Funkce
  • Skupina 2, volba 01
  • Materiál: Ocel, pozinkovaná
CAD (2)
File R349938500.stp (ALL)
File R349938500.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
