R15616A001
EMC100

R15616A001
  • Dostupnost: na dotaz
  • Váha: 3.18 KG
  • Číslo dílu: R15616A001
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R15616A001
Fyzická velikost a hmotnost
Net weight 3.184 kg
Další vlastnosti

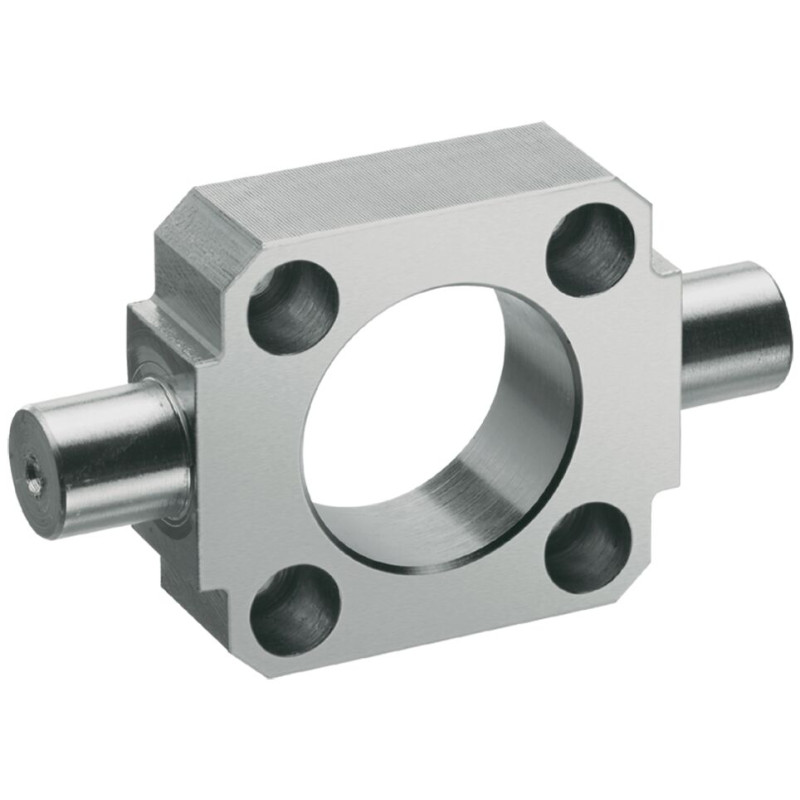

Fastening elements for electromechanical cylinders Trunnion
Nominal size 100
Surface finishing galvanized
Material of electromechanical cylinders Cast iron with spheroidal graphite
Dimension D H11 65 mm
Dimension D1 11 mm
Dimension D2 18 mm
Dimension L1 25.5 mm
Dimension TD e9 25 mm
Dimension Tg 89 mm
Dimension TG 89 mm
Dimension TG tolerance ± 0.2
Dimension Tk 38 mm
Dimension TL h14 25 mm
Dimension TM h14 132 mm
Dimension UW 120 mm
Funkce
  • Skupina 3, volba 01
  • je obsaženo ve skupině 3, volba 03
  • Materiál: Litina se zrnitým grafitem, pozinkovaná
CAD (2)
File R15616A001.igs (ALL)
File R15616A001.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
