R156340160
EMC-105-HD PSBG

R156340160
  • Dostupnost: na dotaz
  • Váha: 0.00 KG
  • Číslo dílu: R156340160
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R156340160
Fyzická velikost a hmotnost
Další vlastnosti

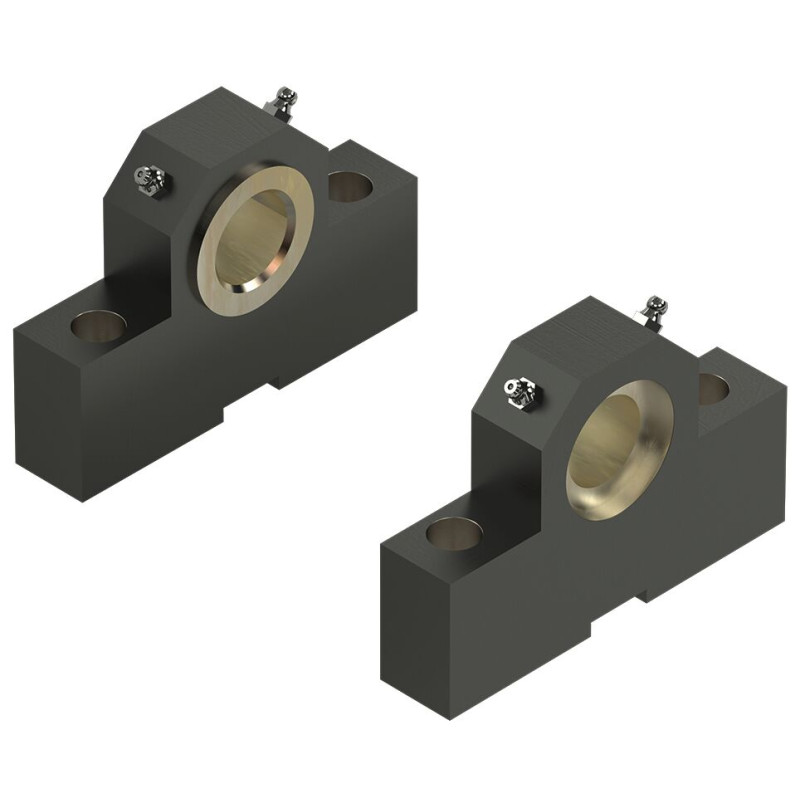

Fastening elements for electromechanical cylinders Pillow block CLTB
Nominal size 130
Footnote mass m Add mass for basis cylinder weight, figure per pair
Material of electromechanical cylinders Steel pillow block / cast iron,Female connector, cast bronze
Dimension CO N9 36 mm
Dimension CR H7 40 mm
Dimension FK js12 76 mm
Dimension FN max. 120 mm
Dimension FS js14 16 mm
Dimension HB H13 22 mm
Dimension I1 88 mm
Dimension I2 60 mm
Dimension I3 2.5 mm
Dimension KC 8.4 mm
Dimension KC tolerance + 0.3
Dimension NH max. 41 mm
Dimension TH js14 125 mm
Dimension UL max. 170 mm
Funkce
  • Skupina 6, volba 001
CAD (2)
File R156340160.igs (ALL)
File R156340160.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
