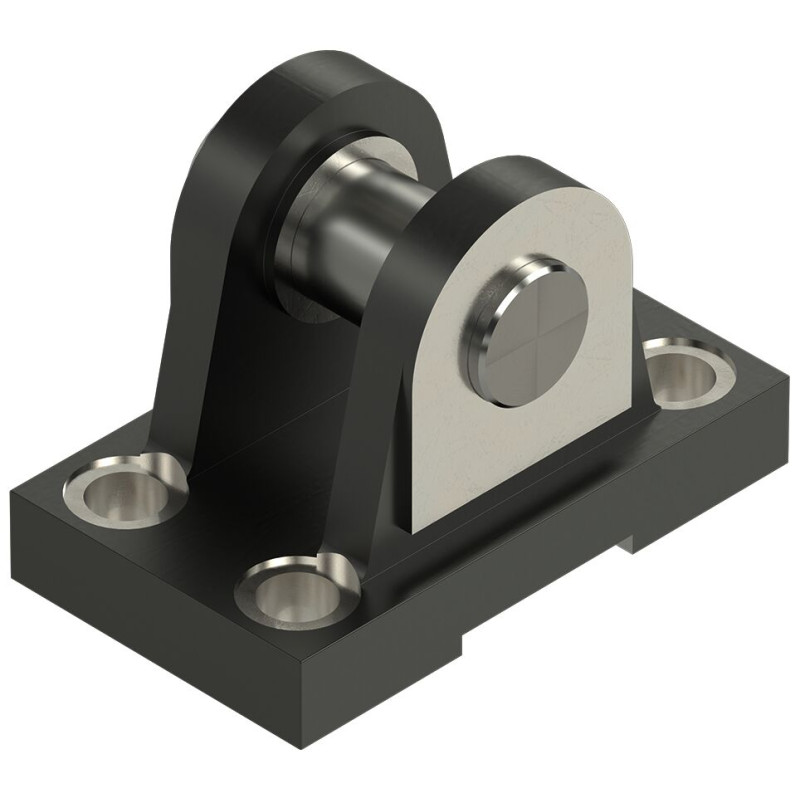

R156340101
EMC-105-HD PSBG

R156340101
  • Dostupnost: na dotaz
  • Váha: 5.68 KG
  • Číslo dílu: R156340101
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R156340101
Fyzická velikost a hmotnost
Net weight 5.68 kg
Další vlastnosti
Fastening elements for electromechanical cylinders Clevis bracket
Material of electromechanical cylinders Bearing, bare cast iron,Bolts, steel
Dimension CK H9 40 mm
Dimension CL h16 90 mm
Dimension CM A12 40 mm
Dimension FL js12 76 mm
Dimension HB H13 22 mm
Dimension KL 16 mm
Dimension LE min. 52 mm
Dimension MR max. 40 mm
Dimension RC js14 65 mm
Dimension S 33 mm
Dimension S bore depth 1 mm
Dimension S bore depth (text) deep
Dimension S with thread depth 33 mm ‒ 1 mm deep
Dimension SL 110 mm
Dimension TB js14 130 mm
Dimension UH max. 170 mm
Dimension UR max. 108 mm
Footnote Dimension CK H9 Matching bolt ⌀ m6 (bolt and bolt locking feature are included in the scope of supply and are not ready-mounted on delivery)
Funkce
  • Skupina 1/6, volba 021
  • Materiál: litina
CAD (2)
File R156340101.stp (ALL)
File R156340101.igs (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
