R037551000

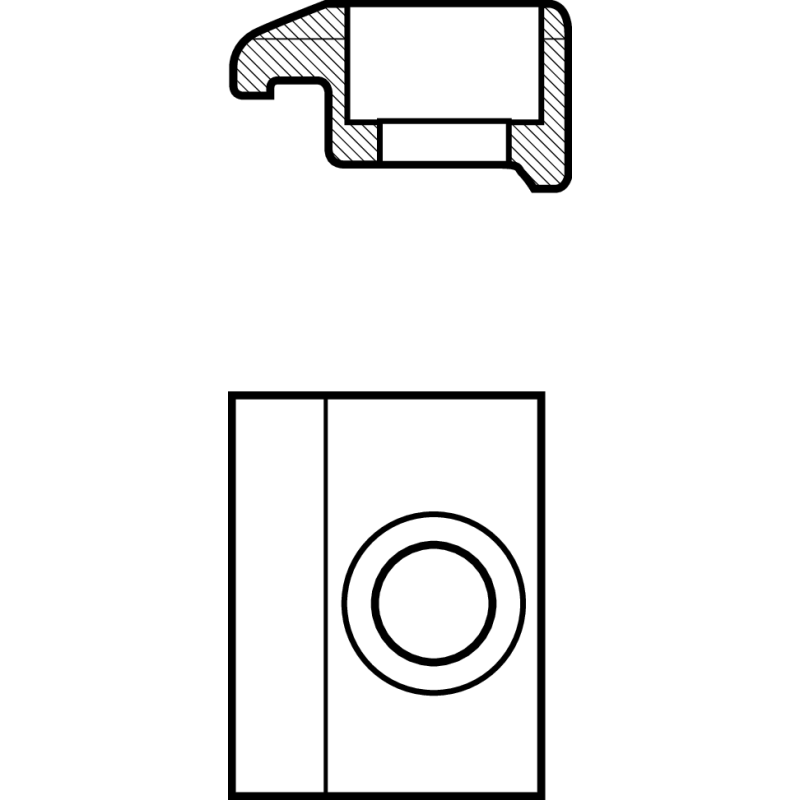

CKX 20-145

R037551000
  • Dostupnost: na dotaz
  • Váha: 0.01 KG
  • Číslo dílu: R037551000
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R037551000
Fyzická velikost a hmotnost
Net weight 9.8 g
Outer diameter D 11.5 mm
Další vlastnosti
Mechanical accessories for linear axes Clamping fixtures
Nominal size CKK-/CKR-110/145,VKK-070/100
Type 1
Number of bores N 1
Tightening torque of fastening screws 9.5
Tightening torque of fixing screws footnote at friction factor 0.125, in accordance with strength class 8.8
Dimension A (profiled rail systems) 25 mm
Dimension D 11.5 mm
Dimension E 5.3 mm
Dimension F 19.3 mm
Dimension G 14 mm
Thread Dimension M6
Dimension H 7 mm
Footnote Dimension for thread Countersink ISO 4762
CAD (3)
File R037551000.stp (ALL)
File R037551000.igs (ALL)
File R037551000.stp (ALL)
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
