R037541002
CKX 15-110

R037541002
  • Dostupnost: na dotaz
  • Váha: 0.04 KG
  • Číslo dílu: R037541002
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R037541002
Fyzická velikost a hmotnost
Net weight 43.62 g
Outer diameter D 11.5 mm
Další vlastnosti
Mechanical accessories for linear axes Clamping fixtures
Nominal size CKK-/CKR-110/145,VKK-070
Type 3
Number of bores N 4
Tightening torque of fastening screws 5.5
Tightening torque of fixing screws footnote at friction factor 0.125, in accordance with strength class 8.8

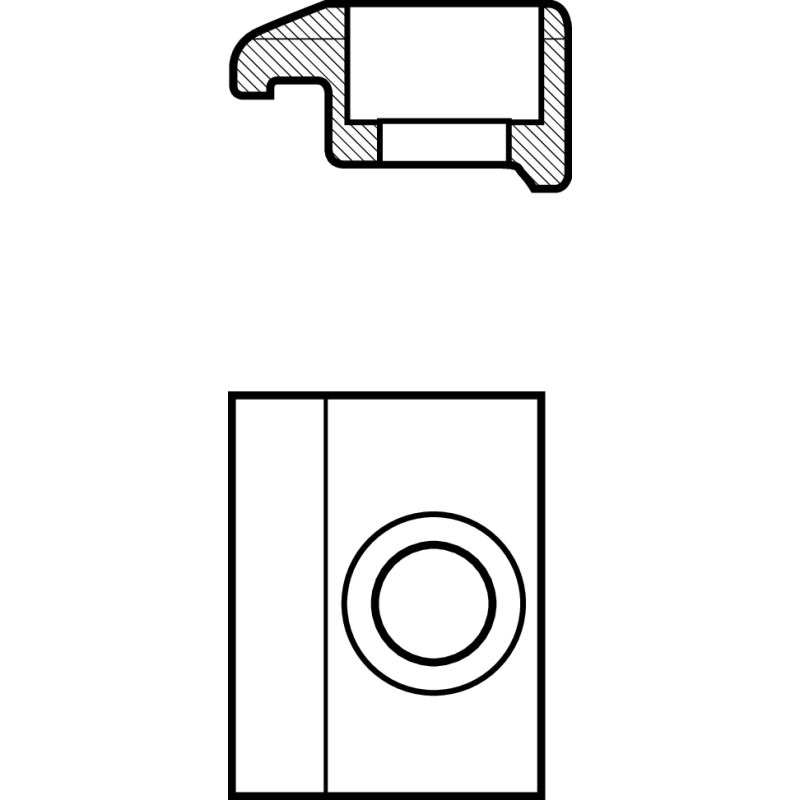

Dimension A (profiled rail systems) 107 mm
Dimension B (profiled rail systems) 8.5 mm
Dimension C 30
Dimension D 11.5 mm
Dimension E 4.8 mm
Dimension F 19.3 mm
Dimension G 14 mm
Thread Dimension M5
Dimension H 7 mm
Footnote Dimension for thread Countersink ISO 4762
CAD (3)
File R037541002.stp (ALL)
File R037541002.igs (ALL)
File R037541002.stp (ALL)
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
