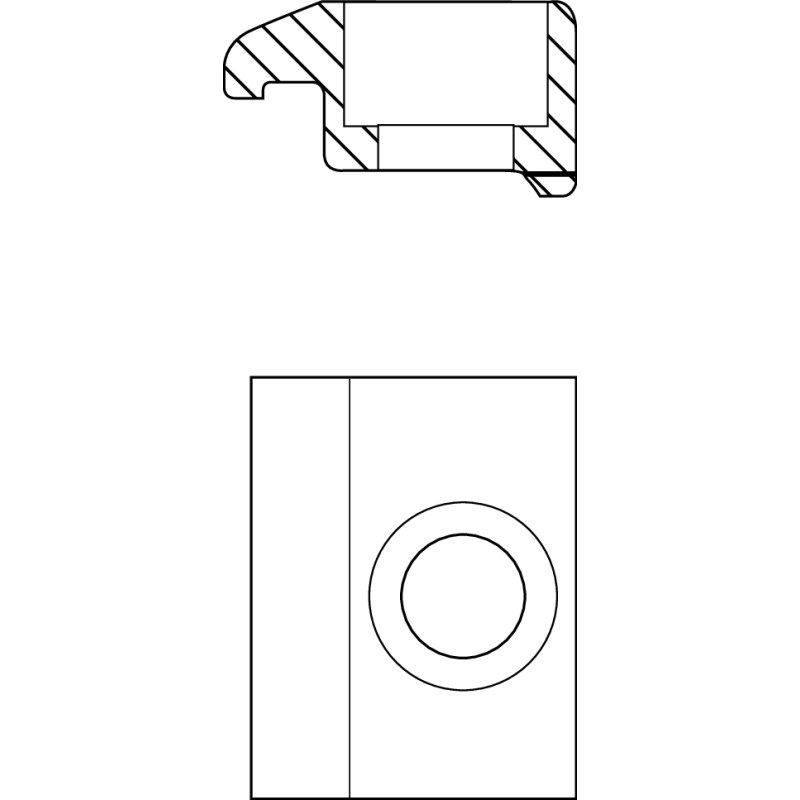

R037531033
CKX 12-90 PB40

R037531033
  • Dostupnost: na dotaz
  • Váha: 0.02 KG
  • Číslo dílu: R037531033
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R037531033
Fyzická velikost a hmotnost
Net weight 0.02 kg
Outer diameter D 9 mm
Další vlastnosti
Mechanical accessories for linear axes Clamping fixtures
Nominal size CKK-/CKR-090
Type 2
Number of bores N 2
Tightening torque of fastening screws 2.7
Tightening torque of fixing screws footnote at friction factor 0.125, in accordance with strength class 8.8
Dimension A (profiled rail systems) 62 mm
Dimension B (profiled rail systems) 11 mm
Dimension C 40
Dimension D 9 mm
Dimension E 4.6 mm
Dimension F 14.5 mm
Dimension G 10.5 mm
Thread Dimension M4
Dimension H 5 mm
Footnote Dimension for thread Countersink ISO 4762
CAD (2)
File R037531033.stp (ALL)
File R037531033.igs (ALL)
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
