R037560010

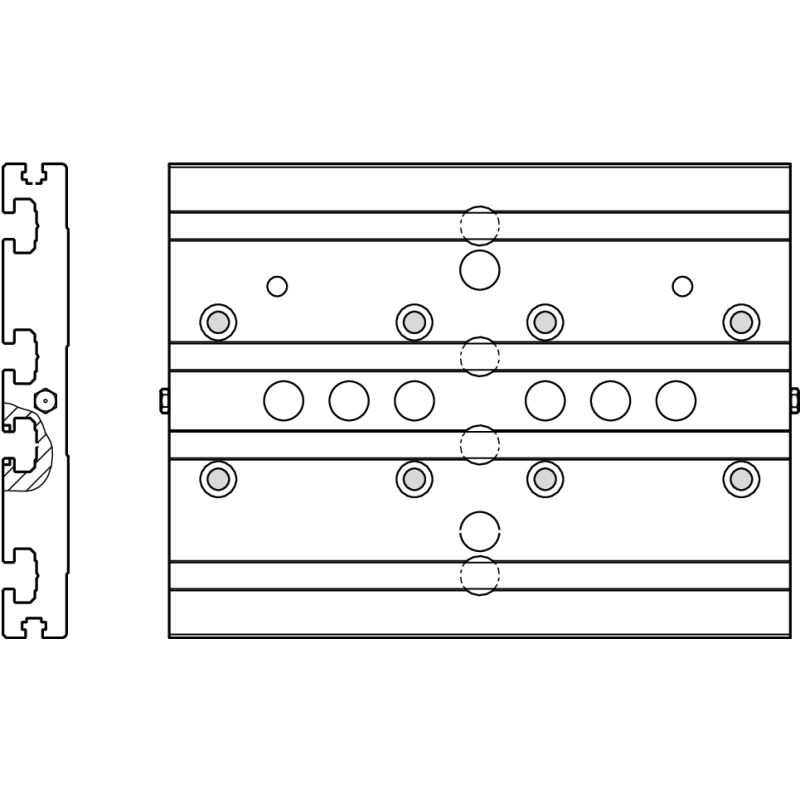

CKK 25-200 L BG

R037560010
  • Dostupnost: na dotaz
  • Váha: 3.68 KG
  • Číslo dílu: R037560010
  • Vyrobce: Bosch Rexroth

Cena:

remove add

Minimální množství pro objednání tohoto produktu je 0.

R037560010
Fyzická velikost a hmotnost
Net weight 3.676 kg
Length of the carriage Lca 305 mm
Další vlastnosti
Mechanical accessories for linear axes Connection plates
Nominal size 200
Lubrication type LCF, LCO
Dimension A (profiled rail systems) 200 mm
Dimension C 27
Dimension D1 40 mm
Dimension D2 40 mm
Dimension E H7 16 mm
Dimension E H7 thread depth 3.1 mm
Dimension E H7 thread depth (text) deep
Dimension E H7 with thread depth 16 mm ‒ 3.1 mm deep
Dimension E2 20 mm
Dimension E2 tolerance ± 0.01
Dimension E3 (profiled rail systems) 20 mm
Dimension E3 tolerance ± 0.01
Dimension F H7 8 mm
Dimension F H7 thread depth 16 mm
Dimension F H7 thread depth (text) deep
Dimension F H7 with thread depth 8 mm ‒ 16 mm deep
Dimension F1 59.5 mm
Dimension F1 tolerance ± 0.01
Dimension F2 41 mm
Dimension F2 tolerance ± 0.01
Dimension H1 (profiled rail systems) 10
Dimension H2 (profiled rail systems) 20.1 mm
Dimension H3 6 mm
Dimension H4 12.5 mm
Dimension H5 31 mm
Dimension H6 12.5 mm
Funkce
  • Fastening of attachments (with sliding blocks)
  • Lubrication of the ball rail system and the ball screw assembly possible via the connection plate
CAD (2)
File R037560010.stp (ALL)
File R037560010.igs (ALL)
Manual (4)
PDF R320103178_2021_04_22_04_2021_ES.pdf (ALL)
PDF Compact modules CKK/CKR (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
PDF R320103178_2021_04_22_04_2021_ZH.pdf (ALL)
Catalog (1)
PDF Compact modules CKK/CKR (EN)
